Ag-AgCl Half-Cells
New, improved sintered pellets with lower resistance and high strength. Stable and well balanced in the presence of current, these small and inexpensive half-cells are easy to work with as bath electrodes.
Models
| Product name | |
|---|---|

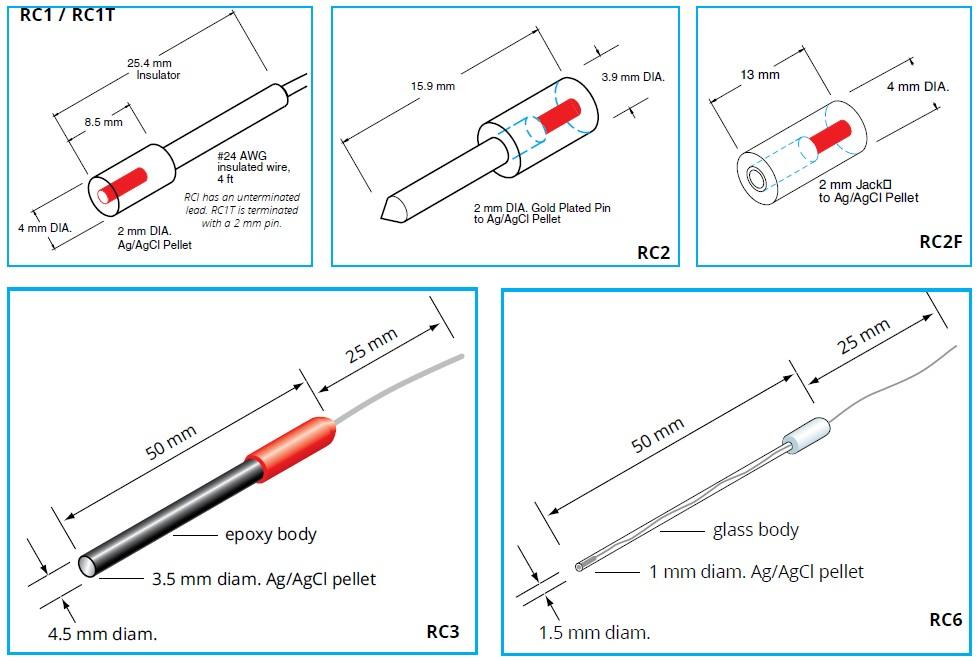

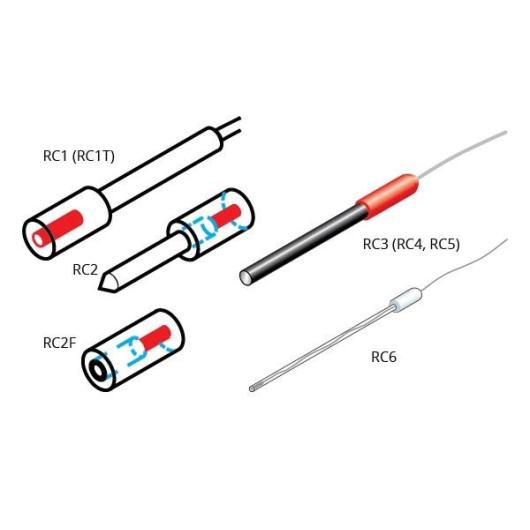

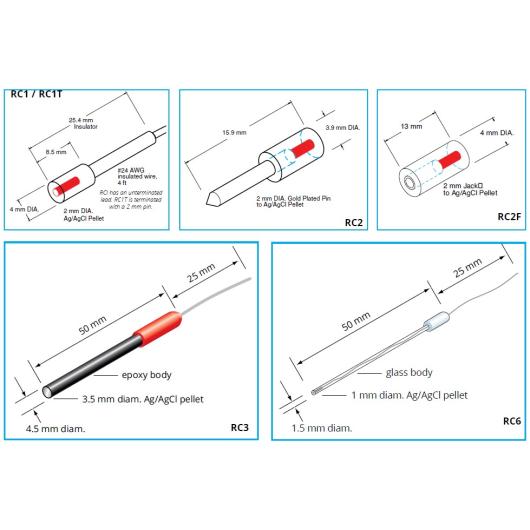

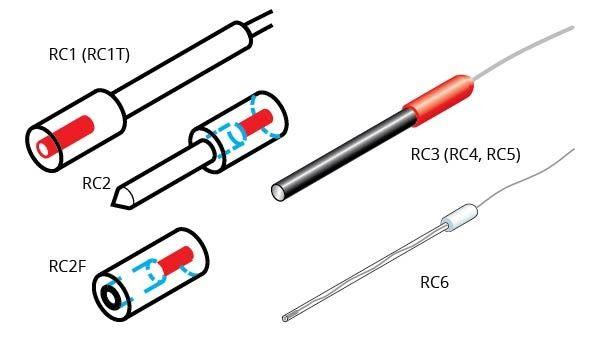

| RC1 Reference cell with 1.5 m lead | |
| RC1T Reference cell, 1.5 m lead, 2 mm pin | |
| RC2 Reference cell with 2.0 mm pin | |
| RC2F Reference cell with female connector | |
| RC3 Reference cell with epoxy body, 4.5 mm diam. x 50 mm | |
| RC6 Reference cell with glass body, 1.5 mm diam. x 50 mm | |

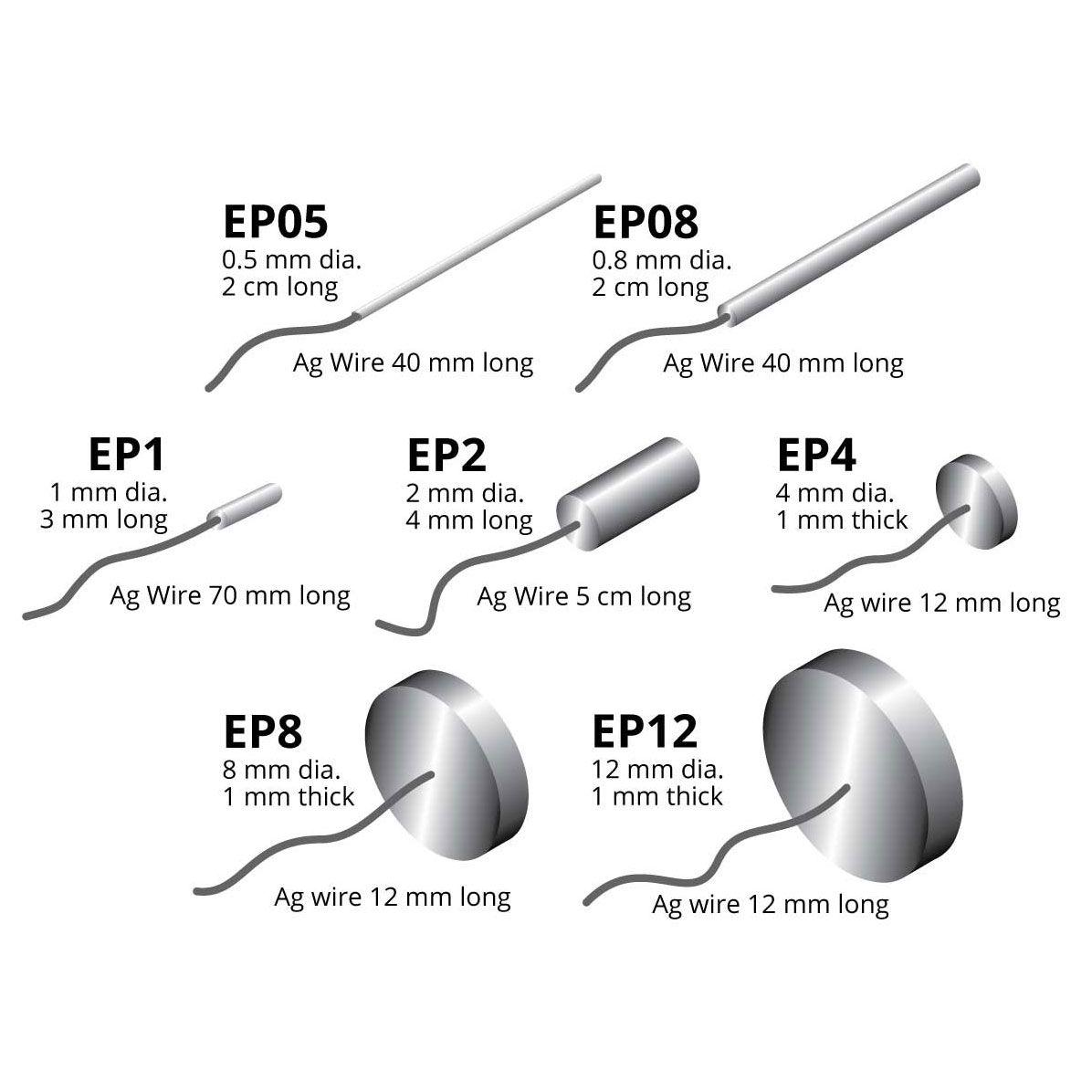

| EP05 Ag/AgCl electrode 0.5 mm diam. x 20 mm | |
| EP08 Ag/AgCl electrode 0.8 mm diam. x 20 mm | |
| EP1 Ag/AgCl electrode 1.0 mm diam. x 3 mm | |
| EP2 Ag/AgCl electrode 2.0 mm diam. x 4 mm | |
| EP4 Ag/AgCl electrode 4.0 mm diam. x 1 mm | |
| EP8 Ag/AgCl electrode 8.0 mm diam. x 1 mm | |
| EP12 Ag/AgCl electrode 12.0 mm diam. x 1 mm | |
| 3578 Adapter cable for Ag/AgCl pellets |
