RWD Life Science

Automated cell counter

Code C100RWD
A real time-saver speeds up your research RWD C-100 automated cell counter is a reliable cell counting devices with highly intelligent analysis software and excellent microscopy optics structure. It can realize accurate, safe cell-counting, and fluorescence analysis in 15 seconds and fast counting mode takes 3s only, which liberates researchers from the heavy work of daily cell counting.
Read more about product
Features

RWD C100 Automatic cell counter realizes analysis with multiple application scenarios

Cell Count Analysis: C100 is suitable for counting cells or particles with a diameter of 4-60μm, such as most cell lines, stem cells, primary cells, etc.

Cell Viability Analysis: When testing cell viability in trypan blue mode, after staining, live cells will be circled in green, and dead cells will be circled in red.

Cell Size Analysis: In cell research, cell size is a key feature, which is often measured in cell transfection, drug testing and cell viability.

After counting, C100 will count the average diameter of the cells in the sample and automatically generate a histogram.

Cell Fluorescence Analysis:

Detect Cell Transfection Efficiency (GFP, RFP):

When transfecting cells with the target gene, the transfection efficiency needs to be evaluated. In general, the transfected plasmid has the sequence encoding the fluorescent protein as the reporter gene, so the successfully transfected cell should be positive for the fluorescent protein. In addition, using a fluorescence microscope or a flow cytometer is a commonly used method for transfection efficiency analysis in laboratories, but both have the disadvantages of complicated operation and high cost. Using the fluorescence analysis function of C100, equipped with the corresponding fluorescence module, can realize the analysis of the expression of GFP, RFP, and other fluorescent proteins, and automatically count them, so as to quickly, simply, and efficiently obtain the positive rate of target gene expression.

Cell Fluorescence Analysis:

Cell Viability Identification (AO/PI Dual Fluorescence Method).
In addition to trypan blue staining, AO/PI dual fluorescence staining has become popular as a more accurate live cell counting method and is widely used for primary cell counting.

High Accurate

  • High-definition imaging system and independently developed recognition algorithms technology enables C100 count and analyze stem cells, primary cells and cell lines accurately.
  • User-defined function. Users can self-define and preset thresholds for cell size, brightness, and roundness to reduce counting errors.
  • Parameters can be modified at any time to obtain the best cell imaging & more accurate counting results.

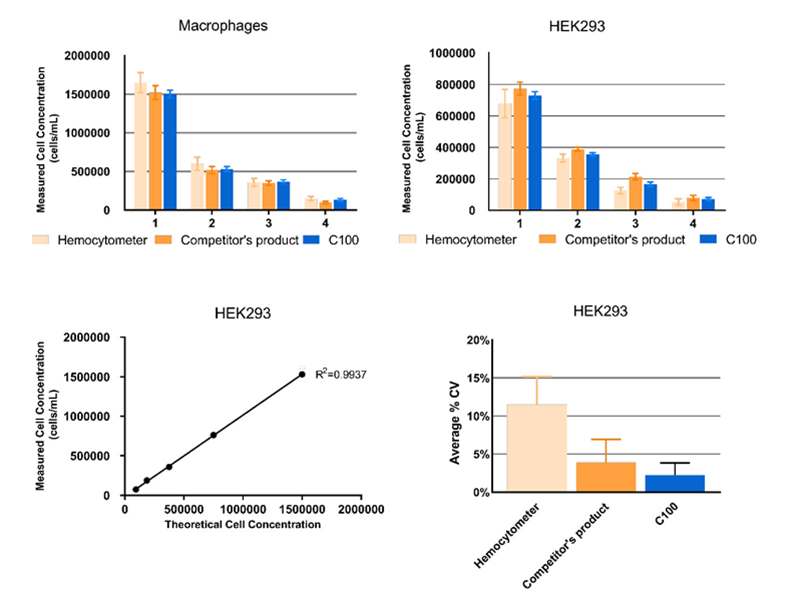

  • Primary mouse macrophages and HEK293 were counted with a hemocytometer and automated counters. The standard deviation of C100 was smaller and the CV value was less than 5%>

Fast

  • In bright field mode, a count can be completed in 15 seconds , while manual counting usually up to 5 minutes; Fast counting mode takes 3s only.
  • Fluorescence analysis operation is easy to use.
  • Built-in dilution calculator can give a dilution solution quickly based on the existed counting result, facilitate the experiments and save a lot time for operators.
  • If each operator counts 10 cell samples (5pcs) per day, then 23.75 hours can be saved each month.

Convenient

  • Multiple data display and storage, including cell images, diameter distribution histograms, count results, live and dead cells percentage.
  • Convenient for storage and analysis, PNG, JEPG, CSV, PDF, etc.
  • 1,000 historical counts can be stored in the device or exported via USB.
  • 45° elevation angle, ergonomic design, reduced visual fatigue and cervical pressure.
  • 7-inch high-definition touch screen with friendly interaction and comfortable operation.

Safe

  • Disposable counting slides, no need to clean, reducing biological hazards risk.

Specifications
  • Amplification factor - 2.5×, 5 mega-pixel
  • Focus method - Manual focusing & Autofocusing (less than 3s)
  • Counting area - 2.15 mm×1.62 mm
  • Fluorescence application - PI(Ex:540/25nm; Em:575/lp nm), DAPI(Ex:375/28nm; Em:460/50nm), AO/GFP(Ex:480/30nm; Em:535/40nm)
  • Cell type - cell lines, stem cells, primary cells
  • Cell sizerange - 4-60 μm (Optimal: 7-60 μm)
  • Cell concentration range - 10 – 10 cells/mL
  • Cell counting time - less than 20s
  • Historical data storage - 1000 counting reports and images at most
  • Languages - English, Chinese
  • Dimensions (W×D×H) - 212 mm(W)* 264 mm(H)* 165 mm (D)
  • Weight - 3.2 kg
Components
Standard system components
  • C100 Automated Cell Counter
  • FL Cube-1 FL Cube (DAPI), Ex:375/28nm
  • Em 460/50nm
  • FL Cube-2 FL Cube (AO/GFP), Ex:480/30nm
  • Em 535/40nm
  • FL Cube-3 FL Cube (PI), Ex:540/25nm
  • Em 575/lp nm
  • DS-50 Disposable Slide (50 pcs/box)
