TESTING LAB

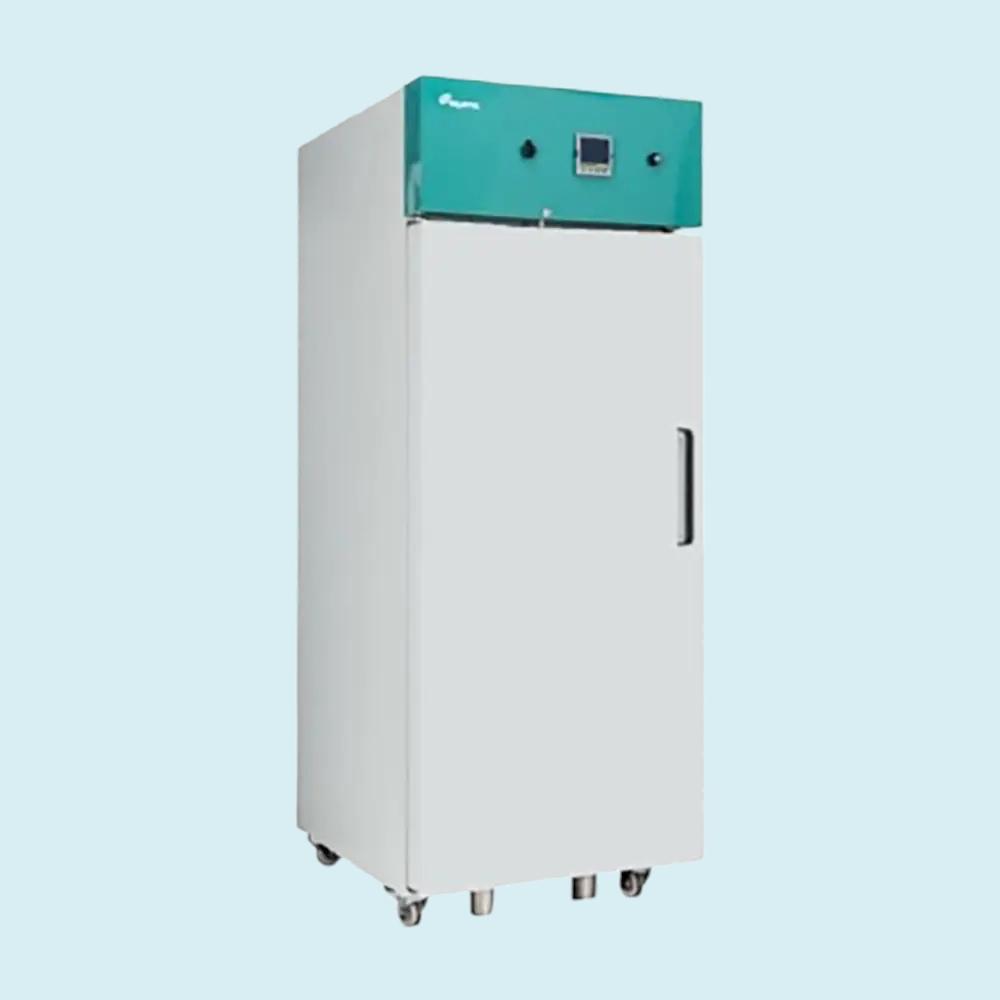

Climate chambers EICS PROLine
Multi-purpose climate chamber with temperature and humidity control designed for stability tests. With horizontal or vertical air flow.
- Gross capacity (liters): 193, 353, 403, 503, 603, 703, 753, 853, 1203, 1503, 1803, 2203, 2803, 2903, 3503
- Configurable parameters: Air flow, CO2, Humidity Control, LED Lighting, Temperature Control
- Compatible with standard: ICH
Features
- Designed for the study of laboratory climates, pharmaceutical stability, cosmetics, food, R&D&I, microbiology, biotechnology, construction, cardboard, adhesives, electronics, etc.
- Horizontal or vertical air flow, from the sides, uniform on all shelves, with speed regulation approx. 0.2 – 0.8m/s.
- TEMPERATURE CONTROL EICHS MODELS Temperature range from +8ºC to +55ºC, with lights on/off.
- HUMIDITY AND TEMPERATURE CONTROL EICHS HR MODELS Humidity control: Working range from 30% to 98% R.H (+/- 3%). With lights off and on.
- Homogeneity of +/-1.0 at 27ºC and +/- 1.5 at 40ºC inside the chamber..
- Stability in the chamber +/-0.3ºC. at 27ºC and +/-0.5ºC, at 40ºC inside the chamber.
- Humidity stability: +/- 3%, in a temperature range +20ºC to +45ºC.
Components
Extend system with following add-ons
- Extended temperature range: : +80ºC / +70ºC /+4ºC/ 0ºC / -5ºC /-10ºC /-20ºC / -30ºC .
- Extended drying capacity up to +10% RH, with additional air dryer.
