NexGen LoProfile IVC Mouse Rack, 60 Cages, No H2O, with EcoFlo Tower Blower
NexGen LoProfile IVC Mouse Rack — 60 Cages, No H2O

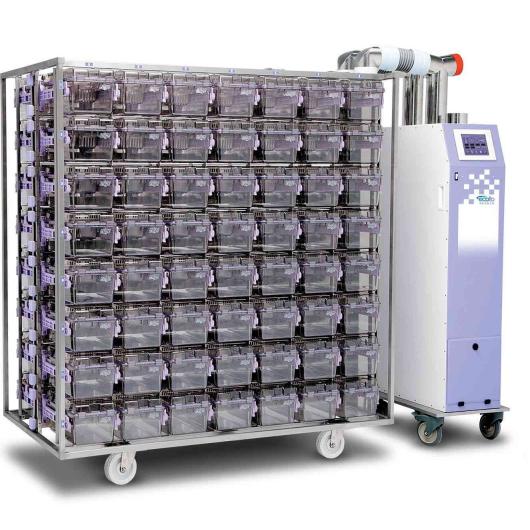

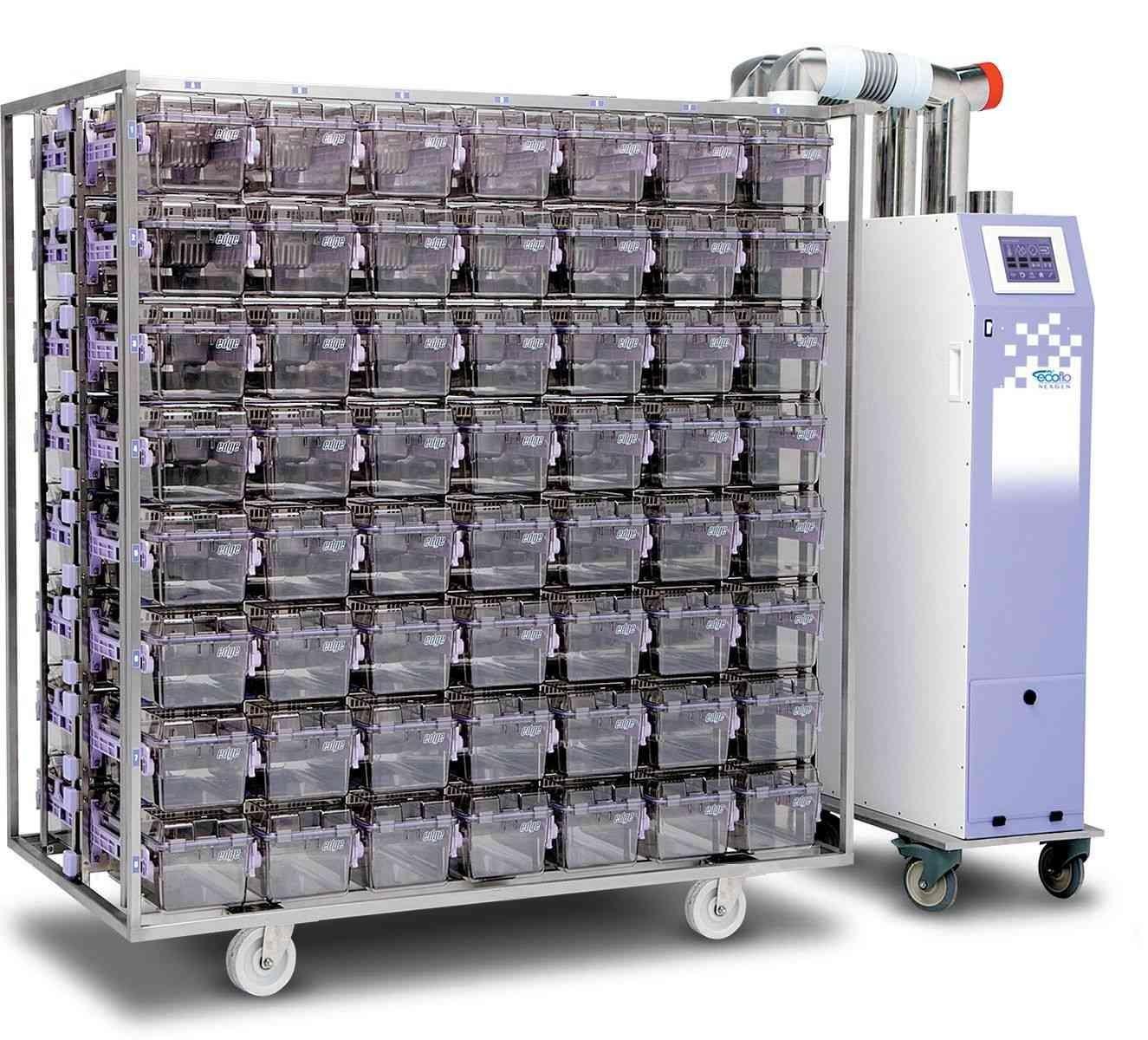

The Allentown NexGen LoProfile (MENLP060CN-0126) is a single-sided individually ventilated cage rack designed for mouse housing in laboratory animal facilities. The low-profile tier spacing of 7.25" optimises room capacity while maintaining full cage accessibility. Each rack accommodates 60 NexGen LoProfile cages arranged in 6 columns × 10 tiers.
The rack operates with the Pressure Nozzle Connected (PNC) ventilation system and is supplied without an integrated water valve — the frame includes H2O studs for straightforward future water installation. Ventilation is provided by a dedicated EcoFlo Tower Blower (EFT228GTB0-6C4M, 230V) with Android touchscreen, WiFi and Bluetooth connectivity for remote monitoring. The rear plenum configuration (4" exhaust left, 4" supply) ensures uniform air distribution across all cage positions.
- Model number: MENLP060CN-0126
- Species: Mouse
- Cage type: NexGen LoProfile (NL)
- Cage capacity: 60 cages
- Layout: 6 columns × 10 tiers
- Rack face: Single-sided
- Tier spacing: 7.25" (Lo Profile)
- Ventilation system: PNC (Pressure Nozzle Connected)
- Plenum configuration: Rear plenum; 4" exhaust (left) & 4" supply
- Water: No integrated water valve; H2O studs included (future-ready)
- Cage lock: Integrate
- Top panel: Yes
- Casters: 3.5" × 1.25", Gray Retort (NexGen standard)
- Caster lock: All (NexGen)

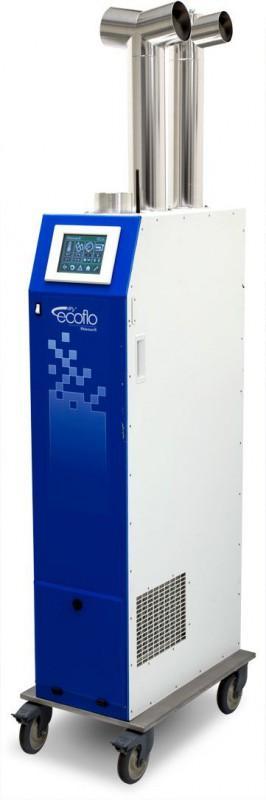

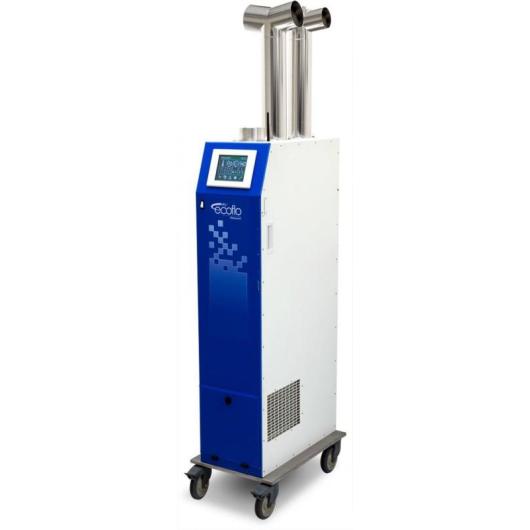

- Blower: EcoFlo Tower Blower EFT228GTB0-6C4M, 230V, Android TS, WiFi/BT, CE
- Power supply: 230V / CE
- Drawing no.: 411607
- MENLP060CN-0126 NexGen LoProfile IVC mouse rack, 60 cages, no H2O, PNC ventilation, rear plenum, top panel, 3.5" casters, Integrate cage lock
- 223581-4 Cage, XJ, CL, No H2O, WH KUP, Assembly — 180 pcs (60 per rack)
- 228652-4 EBT, NGM, Deep, CL, Disposable Gasket, Flex Lock (deep lid) — 180 pcs (60 per rack)
- 225663-1 PFT2, FDR/FDR, CL, Plate (feeder plate) — 240 pcs (80 per rack)
- PC250BCL Bottle, 250 ml, clear, plastic with graduations — 120 pcs (40 per rack)
- PC350BCL Bottle, 350 ml, clear, plastic with graduations — 30 pcs (10 per rack)
- SLC250-200-NW Slip-on cap, 2" tube, .086"D, NW — 180 pcs (60 per rack)
- SLC250-275-NW Slip-on cap, 2.75" tube, .086"D, NW — 30 pcs (10 per rack)
- HH34P9-8 Cardholder, 3×4 horizontal, NexGen, purple, HT — 240 pcs (80 per rack)
- 414202-17 Manifold, horizontal, PC, 6-way, NGM — 4 pcs total
- EFT228GTB0-6C4M EcoFlo Tower Blower, 230V, Android touchscreen, WiFi/BT, CE — 1 pc per rack
| Product name | |
|---|---|
| MENLP060CN-0126 NexGen LoProfile Mouse Rack, 60 Cages, No H2O, with EcoFlo Tower Blower |
