NexGen LoProfile IVC Mouse Rack, 60 Cages, SHR Water, with EcoFlo Rack-Mounted Blowers

Code MENLP060CD-0155
NexGen LoProfile IVC rack for mice, 60 cages (6 columns × 10 tiers), PNC ventilation, SHR Detachable Avidity water valve, with EcoFlo rack-mounted supply and exhaust blowers (230V, Android touchscreen, WiFi/BT). Rear plenum, top panel, Integrate cage lock, 3.5" casters.
Read more
Get quote Tell a colleague
Features

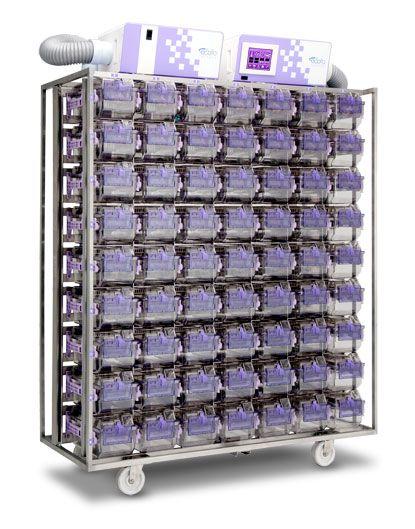

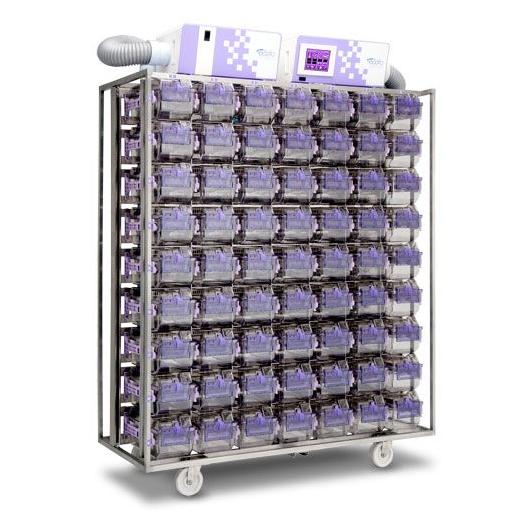

NexGen LoProfile IVC Mouse Rack — 60 Cages, SHR Water

The Allentown NexGen LoProfile (MENLP060CD-0155) is a single-sided individually ventilated cage rack for mice with an integrated SHR (Shared Rack) Detachable Avidity water valve. The water system is fully installed, including H2O studs, enabling automatic cage-side watering compatible with XJ Edge H2O cages. Cage capacity is 60 NexGen LoProfile cages in a 6 columns × 10 tiers configuration with 7.25" lo-profile tier spacing.

Ventilation is delivered by a pair of EcoFlo rack-mounted blowers: a supply blower (EFS128GRP0-6C4M) and an exhaust blower (EFE123GLP0-0X00), both 230V. The supply unit features Android touchscreen control with WiFi and Bluetooth for remote monitoring and data logging. The rear plenum configuration provides uniform airflow across all cage positions.

Specifications
  • Model number: MENLP060CD-0155
  • Species: Mouse
  • Cage type: NexGen LoProfile (NL)
  • Cage capacity: 60 cages
  • Layout: 6 columns × 10 tiers
  • Rack face: Single-sided
  • Tier spacing: 7.25" (Lo Profile)
  • Ventilation system: PNC (Pressure Nozzle Connected)
  • Plenum configuration: Rear plenum; 4" exhaust (left) & 4" supply
  • Water: SHR Valve Detachable Avidity — installed; H2O studs included
  • Cage lock: Integrate
  • Top panel: Yes
  • Casters: 3.5" × 1.25", Gray Retort (NexGen standard)
  • Caster lock: All (NexGen)
  • Supply blower: EcoFlo EFS128GRP0-6C4M, 230V, Android TS, WiFi/BT, EU
  • Exhaust blower: EcoFlo EFE123GLP0-0X00, 230V, PUR, S/E
  • Power supply: 230V / EU
  • Drawing no.: 411971
Components
Standard system components
  • MENLP060CD-0155 NexGen LoProfile IVC mouse rack, 60 cages, SHR water valve, PNC ventilation, rear plenum, top panel, 3.5" casters, Integrate cage lock
  • 223580-2 Cage, XJ Edge, CL, H2O, WH KUP — 60 pcs (cages with integrated watering, compatible with SHR valve)
  • 228655-4 MBT, NGM, CL, Disposable Gasket, Flex Lock (MBT lid) — 60 pcs
  • EFS128GRP0-6C4M EcoFlo Supply Blower, rack-mounted, 230V, Android touchscreen, WiFi/BT, EU — 1 pc
  • EFE123GLP0-0X00 EcoFlo Exhaust Blower, rack-mounted, 230V, PUR, S/E — 1 pc
Models
Product name
MENLP060CD-0155  NexGen LoProfile Mouse Rack, 60 Cages, SHR Water, with EcoFlo Rack-Mounted Blowers
