witeg
Oil bath 11l, 250°C ±0,1°C
Code DH.WHB00111

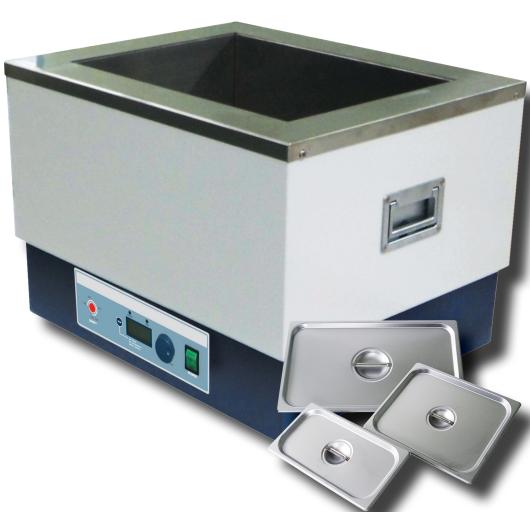

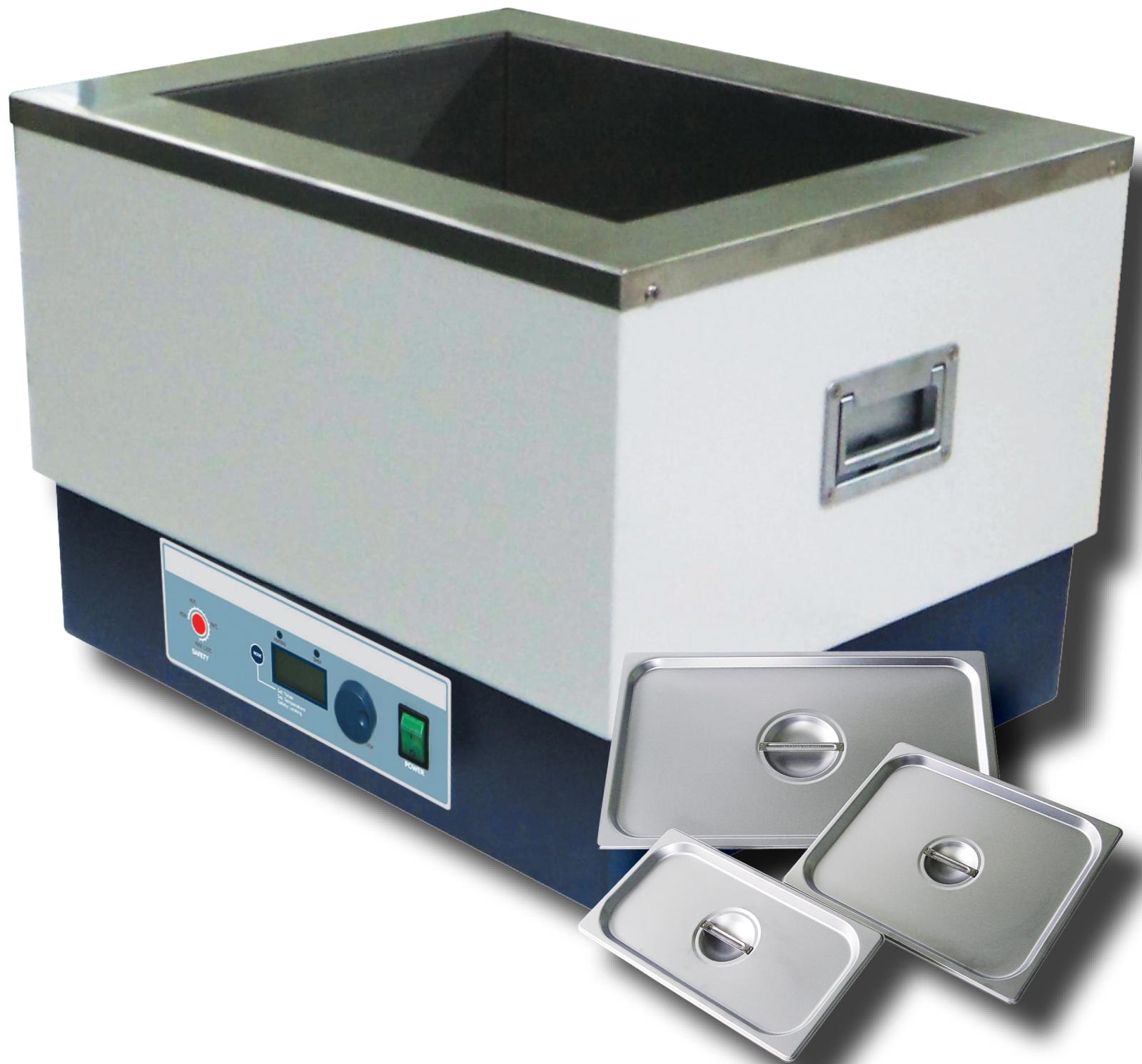

The WHB-11 Oil Bath delivers versatile 11-liter performance with rapid heating (2000 W) and advanced safety features like automatic overcurrent protection. Its expanded workspace (300x250 mm) accommodates multiple samples, while the CE-certified design guarantees reliability for routine laboratory protocols.
Read more about product
See other products in applications
Features
- User’s self-compensation function to control difference between real temperature and indicated temperature
- Stainless steel bath & lid for superior durability & high thermal efficiency/consistency
- Digital timer function (99hr 59min): delay time and operation time can be controlled
- Storage function for the set values of temperature and timer
- Backlight LCD display
- CE-certified and unique serial number for tracing
Safety mechanism
- Locking mode
- Over-temperature and over-current protection
- Sensor error protection
Controller
- Digital fuzzy controller with Jog-Shuttle-switch (turn + push)
Specifications
- Width (inner): 300 mm
- Length (inner): 250 mm
- Height (inner): 150 mm
- Width (outer): 425 mm
- Length (outer): 490 mm
- Height (outer): 340 mm
- Drain valve: mounted
- Weight with packaging: 25 kg
- Capacity: 11 l
- Effective space: 300 x 250 x 110 mm
- Power consumption: 2000 W
- Temperature control resolution: Display 0.1°C, control 0.1°C
- Temperature range: Room temperature +5°C - 250°C
- Temperature fluctuation: ±3.0°C
- Temperature accuracy: ±0.1°C
- Packing size: 600 x 490 x 500 mm
- Controller: Temperature sensor PT100
