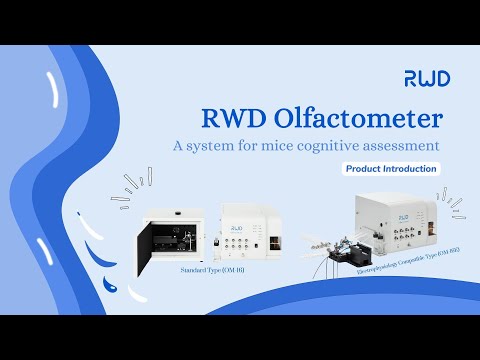

Olfactometer
RWD Olfactometer is a system for mouse cognitive assessment. The system associates odor stimulation with drinking water reward feedback, and build a learning task to quickly help users carry out mouse cognitive assessment experiments.
The Olfactometer can deliver precise odors, study olfaction sensory physiology, study cognitive behavior response. It supports 8 mice training at the same time. The system provides automatic, intelligent, and highly stable olfactory behavior training, and can be expanded to combine with optogenetics, electrophysiology and other equipment.
The RWD Olfactomer supports multiple animals to perform multiple odor training at the same time. Including sound cubicle, mouse head-fixing, licking rewards, odor control, IR camera, desktop software and signal transmission, which can be expanded to connect with optogenetics and electrophysiology equipment.
Features of Olfactometer system
High-throughput training: A single workstation supports up to 8 choice for mice simultaneous training, which greatly saves time and improves experimental efficiency.
Automated behavioral training: The odor stimulation module is associated with the drinking water reward module.
High sensitivity response: Quick odor pulse switch-over, accurate lick counting module.
Powerful software: Support flexible programming, built-in includes Go/No-Go, DNMS, DPA paradigm, and support user-defined paradigm.
Synchronous signaling: Configure digital input/output module, TTL signals transmission to combine with optogenetics, electrophysiology and other equipment.
Synchronous video recording: Configuration with IR camera recording real-time images of mouse licking behavior.
- Number of channels: 1/4/8
- Odor vials: 8/16
- Odor response time: <100 ms
- Odor elimination time: <100 ms
- Odor flow range: 0-0.5 L/min
- Air flow range: 0-2 L/min
- Liquid reward flow range: 0-20 μL
- IR camera: 600x480 pixels, 60 fps
