ADInstruments
PowerLab Sensors ECG 12 Lead Switch Box
Code SEN2141
Switch box enabling mechanical selection of standard 12-lead ECG configurations using 10 lead wires.
Read more
Features

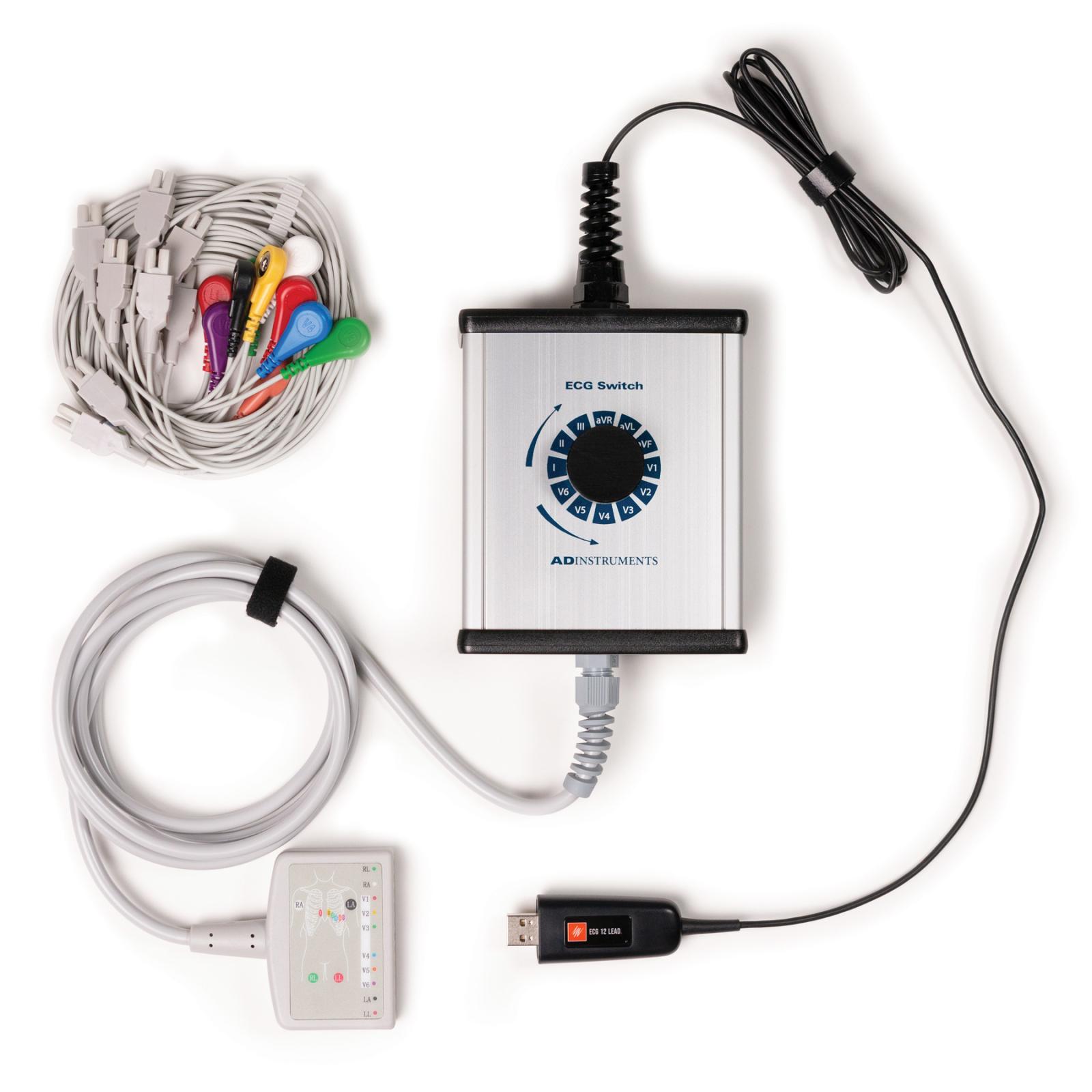

The ECG 12 Lead Switch Box allows for the mechanical selection of standard lead configurations using 10 standard lead wires. It supports direct selection of Lead I, II, III, aVF, aVL, aVR, and V1 to V6 configurations, giving students hands-on experience with the full standard 12-lead ECG set-up.
The ECG 12 Lead Switch Box is used together with the PowerLab Sensors Biopotential sensor and plugs into the PowerLab T1 or straight into a Windows or macOS® computer via USB connection.
Applications of PowerLab Sensors ECG 12 Lead Switch Box
Used in cardiovascular physiology teaching labs to demonstrate standard 12-lead ECG placement and lead selection alongside the Heart and ECG lab.
Components
Standard system components
- SEN2141 ECG 12 Lead Switch Box
- MLA2510 Shielded Lead Wires (10 snap on), lenght 1 m, with 4 mm 'snap-on' connectors
Extend system with following add-ons
- MLA1010 Disposable ECG Electrodes (100 pcs.)
- MLA1010B Disposable ECG Electrodes (1000 pcs.)
- MLA1090 Electrode Cream, single bottle 150 mL
- MLA1090B Electrode Cream (12), bulk pack 12 x 150 mL bottles
- MLA1095B Electrode Paste (6 pcs.), 6 x 120 mL tubes
- MLA1095 Electrode Paste (3 pcs.), 3 x 120 mL tubes
- MLA1093 Abrasive Gel, single 120 mL tube
- MLA1093B Abrasive Gel (3 pcs.), 3 x 120 mL tubes
- MLA1094 Alcohol Swabs (1000 pcs.)
