R-480 Nanoliter Microinjection Pump
The R-480 is designed for high-precision microinjection, with nanoliter volume injection using fine glass capillaries. Precise control of the internal plunger, coupled with a unique seal ring design, makes better air-tightness, ensuring the accuracy and consistency of injection.
Applications:
Rodents: Stereotaxic injection of drugs, viruses, neurotransmitters or dyes into deep brain tissue in rats and mice.
Fish and Frogs: Embryo/larvae injection of zebrafish clawed toad and other model organisms with nucleic acid material, protein, and dyes.
Insects: nematodes, worms, fruit flies, cotton bollworms, rice lice, etc.
Overview
A microinjection pump with a glass capillary. The precise displacement of the plunger pushes the liquid in the glass capillary for nanoliter injection, and a unique seal design ensures a tighter connection and better airtightness between the plunger and the glass capillary.
Product List
![Untitled.png](storage/files/products/6/6187/Untitled.png)
Advantages
Precise injection
Unique seal gasket design ensures precision and accuracy of injection;Precise plunger displacement control with error less than 1%, ensuring consistent injection volume each time
Easy to use

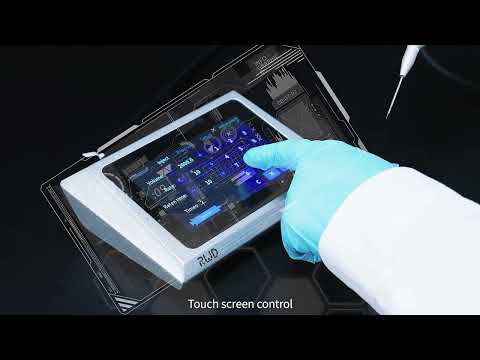

Visual touch interface with real-time display of the injection process;Auotmated injection counts by built-in software, no needs for manual counting;Multiple injection cycles can be programmed, without tedious manual Settings;Foot switch to control injection is available
Protective design
Experimental data can be stored well even the accidental power-off;Plug with anti-misalignment mark can safeguard instrument damage by misplacing the connection cable
- Control unit size (length × width × height): 170×120×45 mm
- Injection unit size (length): 20 cm
- Length of connection cable between injection unit and control unit: 100 cm
- Length of connection cable between footswitch and control unit (optional accessories): 200 cm
- Display:
-
5.0 inch capacitive touch screen
-
resolution: 800×480 px
-
- Weight:
-
Control unit 0.8 kg; Injection unit 0.2 kg;
- Footswitch 1.5 kg
-
- Minimum injection rate: 0.02 nl/s (or 1.20nl/min)
- Maximum injection rate: 200 nl/s (or 12000nl/min)
- Rate minimum resolution: 0.01 nl/s (or 0.1nl/min)
- Fill rate: 0.02-200 nl/s (or 1.20-12000 nl/min)
- Empty rate: 0.02-200 nl/s (or 1.20-12000 nl/min)
- Reset rate: 200 nl/s (or 12000 nl/min)
- Minimum injection volume: 0.6 nl
- Maximum injection volume: 5000.0 nl
- Minimum volume resolution: 0.1 nl
- Plunger travel distance: 28 mm
- Cycle: 1-8000
- Delay: 1-999 s
- Glass electrode Dimension: O.D. 1.14 mm, I.D. 0.53 mm
