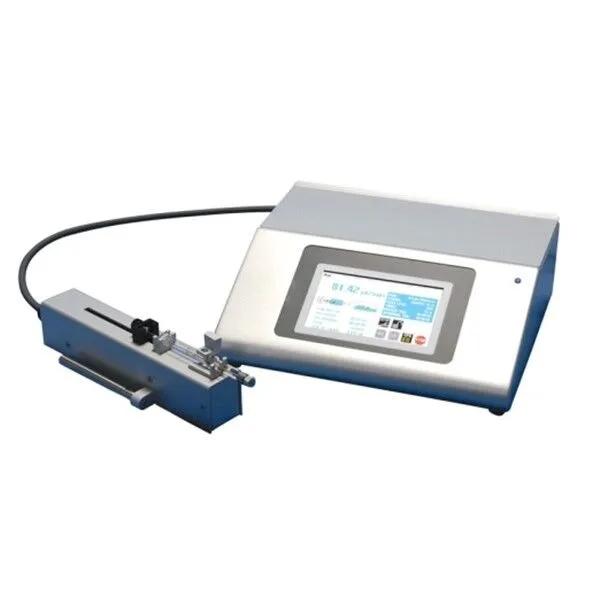

Syringe pump single channel, Legato 130

Code KDS LEGATO130
KDS Legato 130 Syringe Pump is mainly used for virus stereotaxic brain injection and microdrug stereotaxic brain injection.
Read more about product
See other products in applications
Features

The Legato® 130 works exclusively with micro syringes from 0.5 μl to 1000 μl. It has a remote pump head which can be placed close to the experiment to eliminate dead volume with long tubing. The remote pump head makes it ideal for use with a micromanipulator, stereotaxic and other clamping devices. The syringe plunger can be tightly secured with a movable mounting screw, eliminating any movement of the syringe. The new fixed cable with the remote head to the controller ensures the pump head and the controller are secure.

Specifications
  • Accuracy - ±0.5%
  • Syringes (Min/Max) - 0.5 µl to 1000 µl
  • Flow Rate - Minimum (0.5 µl syringe): 3.66 pl/min, Maximum (1000 µl syringe): 3.818 ml/min
  • Display - 4.3 WQVGA TFT Color Display with Touchpad
