witeg

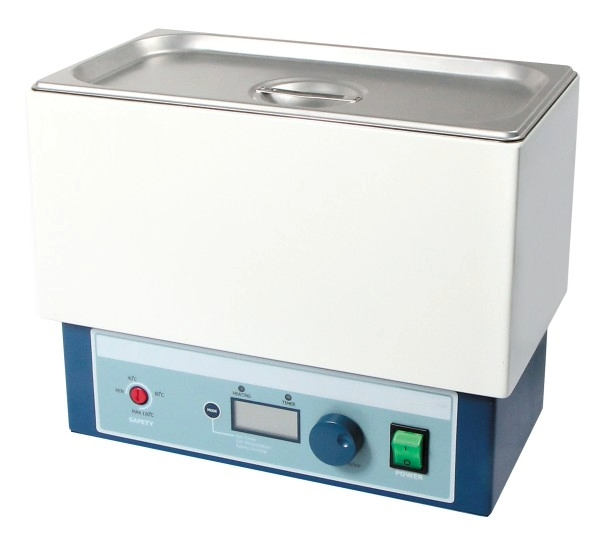

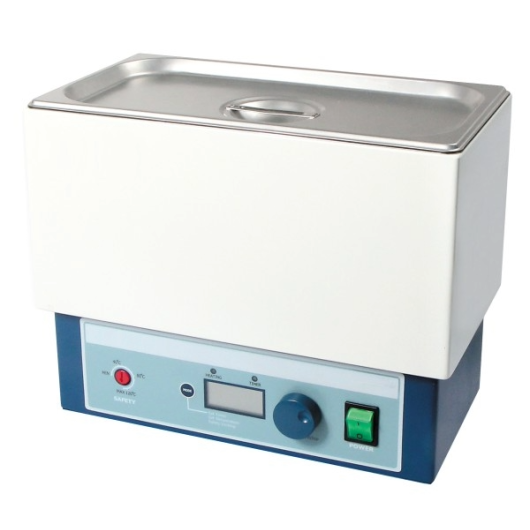

Water bath 6 l, up to 100°C

Code DH.WB000106
The WB-6 230 V water bath is a compact and versatile solution designed for general laboratory applications, featuring a 6-liter stainless steel chamber for reliable performance. With precise digital temperature control (±0.1°C accuracy), user-friendly timer functions, and a bright backlit LCD, it ensures both accuracy and convenience. Enhanced safety features, including locking mode and over-temperature protection, provide peace of mind during daily operation
Read more about product
See other products in applications
Features
  • User’s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
  • Stainless steel bath & lid for superior durability & high thermal efficiency/consistency, dome lid optional
  • Digital timer function (99hr 59min): delay time and operation time can be controlled
  • Storage function for the set values of temperature and timer
  • Backlight LCD display
  • CE-certified and unique serial number for tracing

Safety mechanism of witeg's water bath

  • Locking mode
  • Over-temperature and over-current protection
  • Sensor error protection

Controller

  • Digital fuzzy controller with Jog-Shuttle-switch (turn + push)
Specifications
  • Model: WB-6 230 V
  • Capacity: 6 l
  • Inner dimensions (W x L x H): 300 x 155 x 150 mm
  • Outer dimensions (W x L x H): 325 x 180 x 260 mm
  • Effective space: 300 x 155 x 110 mm
  • Drain valve: none
  • Power consumption: 800 W
  • Temperature control resolution: Display 0.1°C, control 0.1°C
  • Temperature range: Room temperature +5°C to 100°C
  • Temperature fluctuation: ±1.0°C
  • Temperature accuracy: ±0.1°C
  • Temperature sensor: PT100
  • Timer function: 99 hours 59 minutes (delay time and operation time can be controlled)
  • Storage function: Storage for set values of temperature and timer
  • Display: Backlight LCD
  • Weight with packaging: 8 kg
  • Packing size: 350 x 210 x 310 mm
  • Power supply: 230 V (120 V available on request)
  • Safety: Locking mode, over-temperature and over-current protection, sensor error protection
  • Controller: Digital fuzzy controller with Jog-Shuttle-switch (turn + push)
  • Bath & lid material: Stainless steel
