Automation shaker incubator

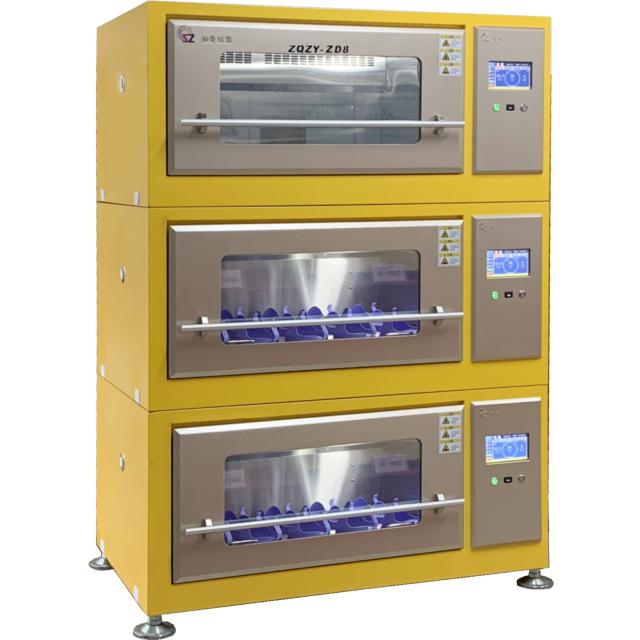

Stackable

• Stack up to three units high, space-saving and high-capacity.
• Each machine operates independently.

Drive

• The triple-eccentric Drive is precisely counterbalanced to impart smooth, uniform motion to all flasks, regardless of their position on the platform.
• The servo motor ensures precise speed control and guarantees high-speed performance and stability.

Safety

• Audible and visible alarms alert the user and shut off heaters in case of setpoint deviation.
• Automatic restart after a power interruption with non-volatile memory keeps studies running smoothly.
• The operation will stop when the door is opened, ensuring Safety.

AUTOMATIC DOOR

SHAKING TRAY

• Tray automatic positioning system.
• Customize the suitable clamp according to the customer's culture bottle/microplate and robotic systems.

Clean

• The SUS304 stainless steel interior chamber with rounded corners is easy to Clean and prevents bacterial breeding.
• Equipped with UV sterilization.
• The bottom of the chamber can be thoroughly washed.

Cooling

• High-quality and low-noise CFC-free compressors ensure effective refrigeration and stability.
• Special refrigerating process control technology with adjustable Cooling capacity makes temperature control more accurate.
• The timing frost-removal function, with a range of 1 to 89 minutes and a defrost interval of 30 to 600 minutes, ensures long-term operation at low temperatures without ice blockage.

View

• The stainless steel frames with a heating function around the door glass can adjust the temperature as needed.
• Insulating and tempered door glass, along with the stainless steel frames with heating function, effectively prevent condensation and provide a clear View of the culture state without opening the door.
• The touch screen makes parameter setting and Viewing easy, displaying the following simultaneously:
  • Set temperature, speed, time, and real-time values.
  • Rotation direction settings: positive or reverse.

Sensor

• PT-100 temperature Sensor.
• Humidity Sensor (optional).

Data record

• Data memory can record more than 600,000,000.00 datas.
• Data curves, such as real-time temperature and speed, can be displayed.
• Data can be easily transferred via the USB interface.
• RS-232 or RS-485 interfaces are optional.

Other features

• Embedded blackout curtain is stretchable, durable, and completely prevents light interference with culture (optional).
• High-temperature steam automatic humidity control system, adjustable from ambient humidity to 90% (optional).
• CO2 control (optional).
• Compliant with FDA 21 CFR Part 11 computerized software system (optional).
• Photosynthesis lighting system (optional).
• Mobile and PC remote monitoring (optional).
• 25 mm access port for adding instrumentation or additional probes.
