witeg

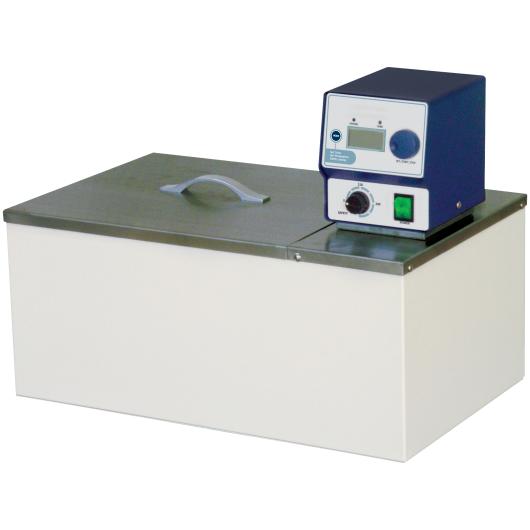

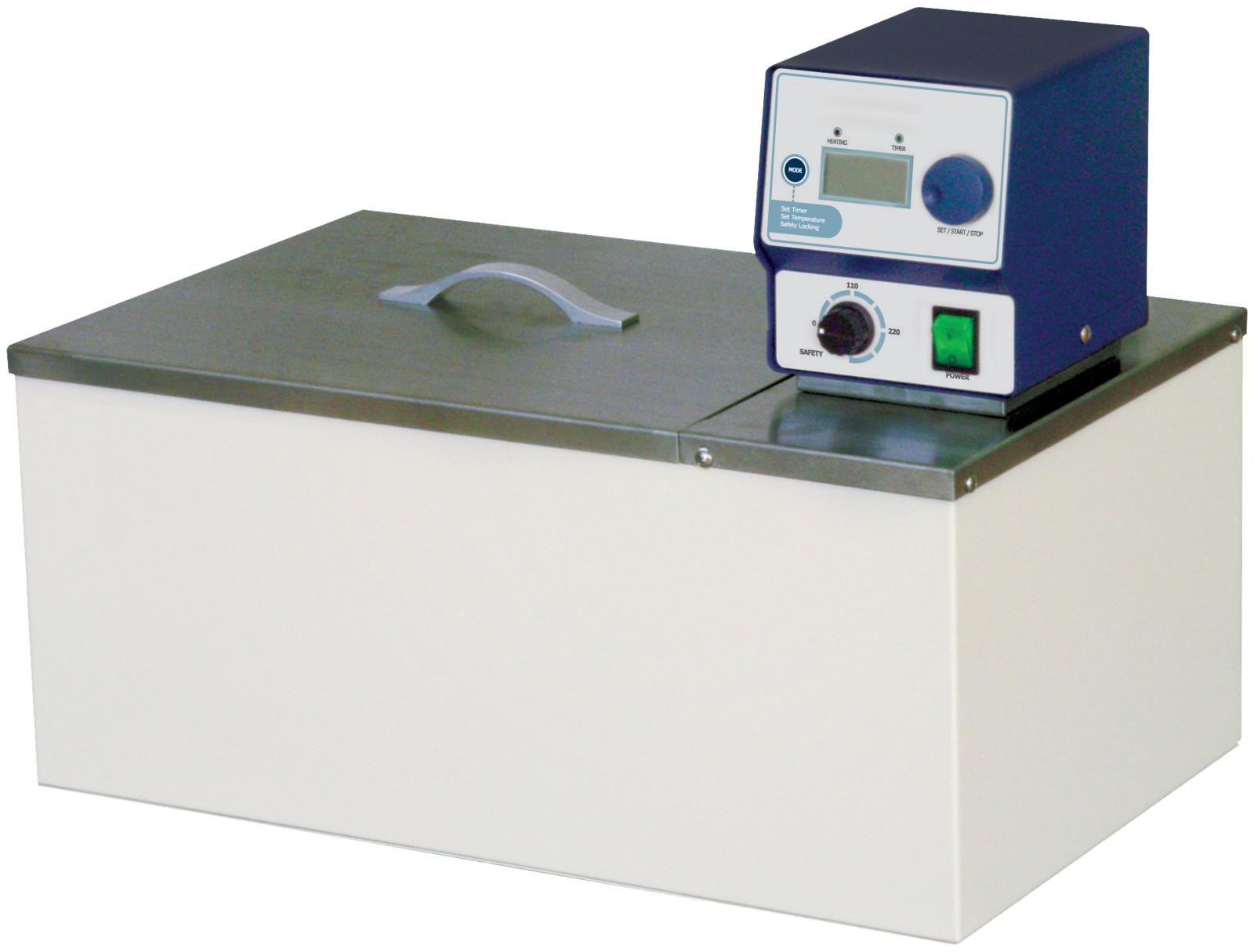

Circulation water bath 22l, 100°C
Code DH.WCB00122
Designed for high-volume tasks, the WCB-22 delivers 2000 W power and a 372 x 295 x 150 mm workspace, supported by a mounted drain valve for easy maintenance. Robust stainless steel construction and 5 L/min pump flow ensure reliability in industrial settings. Includes advanced safety features like over-current protection and sensor error detection.
Read more about product
See other products in applications
Features
Ideal for: biotechnology, clinical, environmental, medical, petroleum & food industry, pharmaceutical and industrial applications. Connection with evaporators and viscometers is applicable.
Features
- User‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
- Stainless steel bath & lid for superior durability & high thermal efficiency / consistency
- Storage function for the set values of temperature and timer
- Powerful circulation pump assures temperature uniformity: internal and external circulation
- Storage function for the set values of temperature and timer
- Backlight LCD display
- CE certified and unique serial number for tracing
Safety mechanism
- Locking mode
- Over-temperature and over-current protection
- Sensor error detection
- Low water level warning and automatic stop function
Controller
- Digital fuzzy controller with Jog-Shuttle-switch (turn + push)
Specifications
- Width (inner): 500 mm
- Length (inner): 295 mm
- Height (inner): 150 mm
- Width (outer): 540 mm
- Length (outer): 335 mm
- Height (outer): 410 mm
- Drain valve: Mounted (Ø9.5 - 11mm)
- Connections: Circulation nozzle inner Ø7 x outer Ø11mm (IØ 9 / OØ 12mm silicon tube connection for inner circulation)
- Weight with packaging: 18 kg
- Capacity: 22 l
- Effective space: 372 x 295 x 150 mm
- Pump performance: 5 l/min
- Power consumption: 2000 W
- Temperature control resolution: Display 0.1°C, control 0.1°C
- Temperature range: Room temperature +5°C - 100°C
- Temperature fluctuation: ±0.2°C
- Temperature accuracy: ±0.1°C
- Packing size: 580 x 380 x 470 mm
- Controller: Temperature sensor PT100
- Flow rate: 5 l/Min (internal/external)
