Floored refrigerated incubator shaker

Drive

• Triple-eccentric Drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.

• Its servomotor offers precise speed control and ensures high-speed performance and stability.

Safety

• Audible and Visible Alarms alert the user to prevent further complications.

• Automatic restart with Non-Volatile Memory secures your research to keep your studies running smoothly

• Auto stop procedure activates when the doors are opened while the machine is still working making it much safer

Clean

• SUS304 stainless steel chamber.

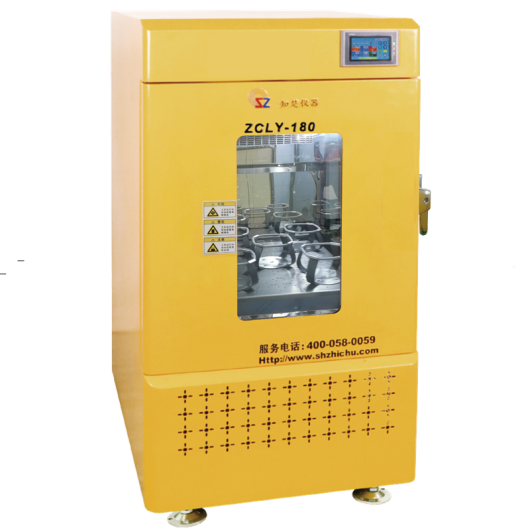

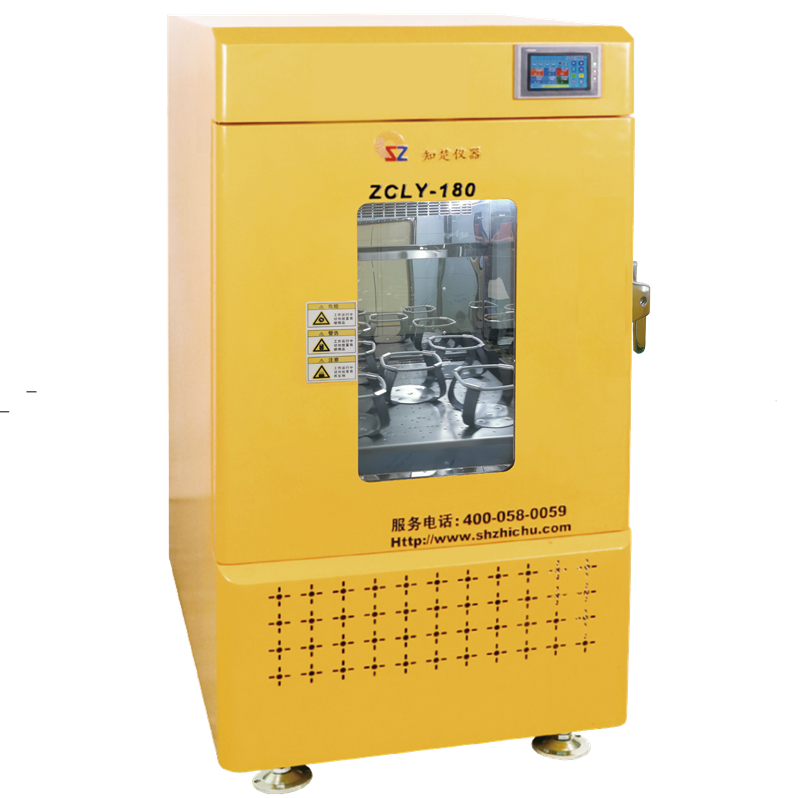

• Rounded corners easy to Clean and protect bacteria breeding. (only for CO2 model ZCLY-180)

• With UV sterilization.

• The bottom of the chamber can be washed thoroughly. (only for CO2 model ZCLY-180)

Cooling

• High quality and low noise CFC free compressors ensure refrigeration being effective and stable.

• Special refrigerating process control technology with adjustable Cooling capacity makes temperature control more accurate. (option)

• Frost-removing function: the timing range is 1 to 89 minutes and the defrost interval is 30-600 minutes adjustable, ensures the machine will work long time in low temperature without ice block.

View

• The stainless-steel door frames come with the heating function, temperature can be adjusted as needed. (only for CO2 model ZCLY-180)

• Insulating and tempered door glass as well as the stainless-steel frames with heating function effectively avoid condensation which provides good View of the culture state without opening door. (only for CO2 model ZCLY-180)

• Touch Screen interface makes Viewing parameters such as set temperature, speed, real time temperature and remaining time easy, it also allows setting the motor rotation direction. (standard for CO2 model ZCLY-180).

Sensor

• High sensitivity infrared Sensor measures the CO₂ concentration automatically (only for CO2 model ZCLY-180)

• For each shaker, a bottle of  CO₂ gas (20kg) lasts no less than 35days if the door is open normally and about 145 days when door is not opened. (only for CO2 model ZCLY-180)

• PT-100 temperature Sensor

• Humidity Sensor. (optional)

Data record (only for touch screen)

• Data memory can record 3 months of data.

• Data curves such as real-time temperature and speed can be displayed.

• Easy data transfer with USB interface.

• RS-232 or RS-485 interface is optional.

Other features

• Test hole(25mm)

• Embedded blackout curtain stretching repeatedly and not easy to damage, completely avoids light influence on culture. (optional)

• Compliant with FDA 21CFR part 11 computerized software system. (optional)

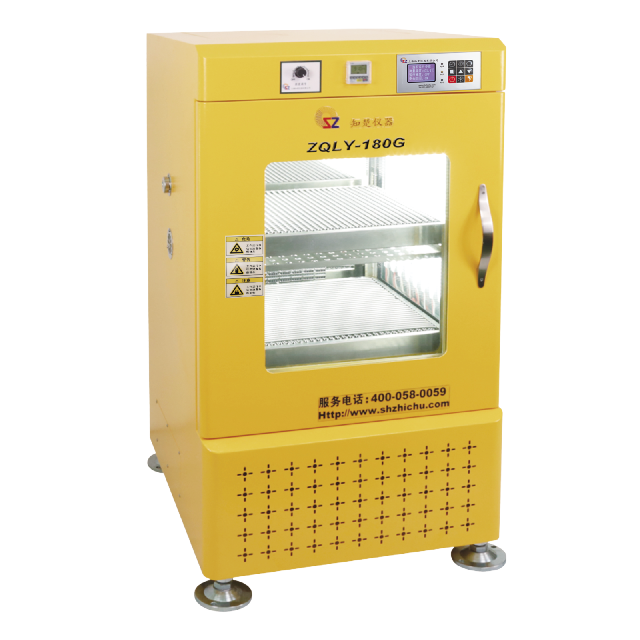

• Photosynthesis Lighting System. (optional for model ZQLY-180G)

• Mobile and PC remote monitor. (optional)
