witeg

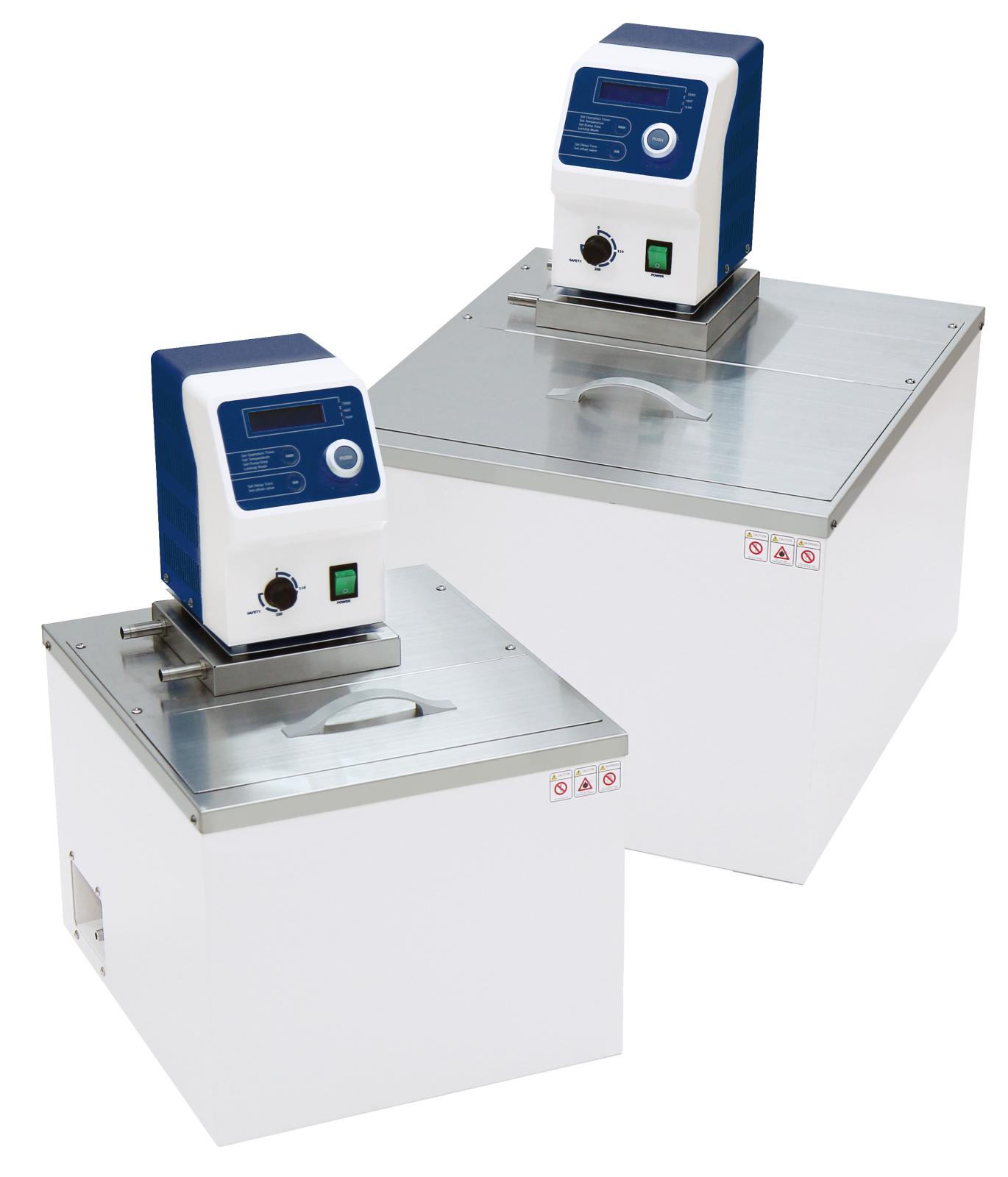

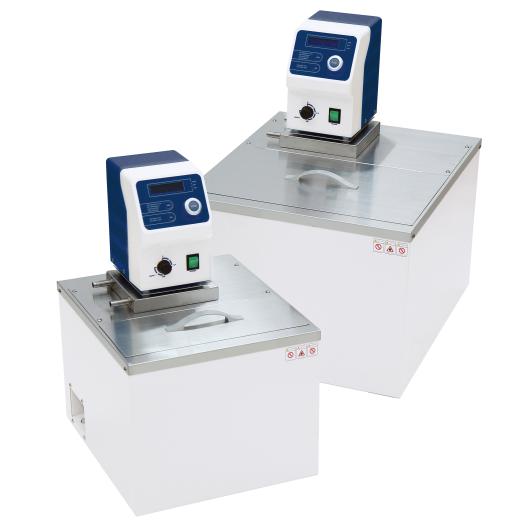

Circulation water bath 22l, 250°C
Code DH.WCH00422
With 2200 W power and a spacious 340 x 250 mm workspace, this 22-liter bath excels in large-scale industrial processes. Features external circulation nozzles and robust ceramic insulation for stability up to 250°C. Enhanced safety includes overheat protection and sensor error detection.
Read more about product
See other products in applications
Features
Ideal for: Applications at high temperature Biotechnology, clinical, environmental, medical, petroleum & food industry, pharmaceutical and industrial applications Connection with evaporators and viscometers is applicable Features: Corrosion resistant stainless steel bath with 1.2 mm thickness Ceramic fibre insulator of 50 mm thickness and powder-coated steel body User‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C) Digital timer function (99hr 59min): delay time and operation time can be controlled Drain valve mounted and stainless steel flat lid included Storage function for the set values of temperature and timer Backlight LCD display CE certified and unique serial number for tracing Safety mechanism:
- Overheat and over-current protection
- Sensor error detection
- Locking mode
- Digital fuzzy controller with Jog-Shuttle-switch (turn + push)
Specifications
- Width (inner): 340 mm
- Length (inner): 440 mm
- Height (inner): 155 mm
- Width (outer): 463 mm
- Length (outer): 563 mm
- Height (outer): 569 mm
- Connections: External circulation nozzle inner: Ø10.5mm, outer Ø12.5mm
- Pressure: 5 psi
- Weight with packaging: 23 kg
- Capacity: 22 l
- Effective space: 340 x 250 x 155 mm
- Pump performance: 16 l/min, max. lift: 2.8m
- Power consumption: 2200 W
- Temperature control resolution: Display 0.1°C, control 0.5°C
- Temperature range: Room temperature +5°C - 250°C
- Temperature fluctuation: ±0.2°C
- Temperature accuracy: ±0.1°C
- Packing size: 600 x 490 x 500 mm
- Controller: Temperature sensor PT100
- Flow rate: 16 l/Min.
