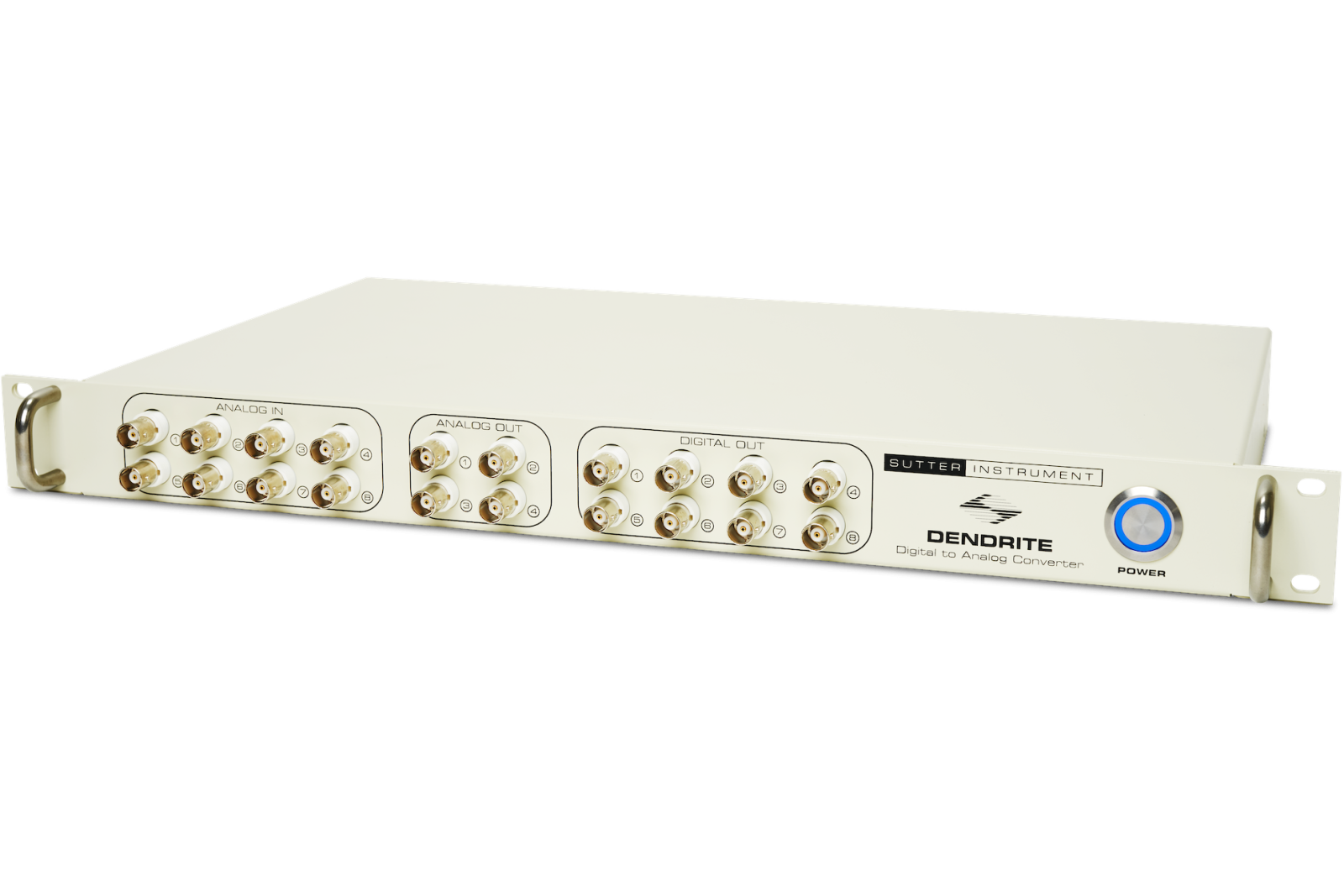

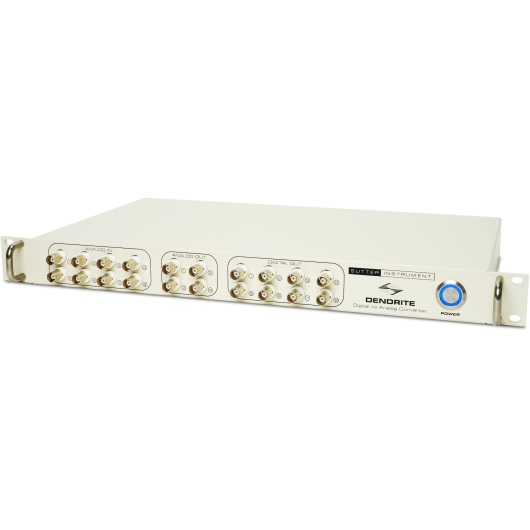

The Dendrite™ is Sutter Instrument's versatile data acquisition system for electrophysiology, compatible with most existing amplifiers. Features up to 8 analog inputs, 4 outputs, 8 TTL outputs at up to 400 kHz. Bundled with SutterPatch® software for Windows and macOS.
Read more
Features
Dendrite™ — Data Acquisition for Any Electrophysiology Setup
The Dendrite™ Data Acquisition System from Sutter Instrument meets the needs of researchers who want to combine their existing amplifier with the full functionality of SutterPatch® software. Featuring independent 16-bit A/D and D/A converters and compatibility with most patch clamp and electrophysiology amplifiers (±10 V signal range), the Dendrite covers the majority of electrophysiology applications.
Data Acquisition
- Up to 8 analog input channels (±10 V; 0.1–50 kHz sampling rate per channel)
- 4 analog output channels (±10 V)
- 8 digital output channels (TTL)
- Up to 400 kHz aggregate sampling rate
- Independent 16-bit A-D and D-A converters — no crosstalk, maximum signal fidelity
- Trigger input and output lines for synchronization with other equipment
- High-speed USB 2.0 connection — no additional computer interface hardware needed
- Compatible with most patch clamp amplifiers compliant with ±10 V standard signal range
- Controls amplifiers and peripherals accepting standard analog or digital input
- Quick installation — drivers and software typically running within minutes
- Over 600 metadata attributes supported
SutterPatch® Software
- Real-time analysis: I-V curves and time course plots
- Event Detection Module, Action Potential Analysis Module, Camera Module
- Single-Channel Analysis Module — all-points histogram, idealized traces, amplitude distributions
- Waveform Editor; 2D and 3D scope display; Data Navigator; Solution Editor
- Over 600 metadata attributes; publication-quality graphics
- Windows 10 or later (64-bit) or macOS 10.11 (El Capitan) or later
Applications of Dendrite™ System
- Patch clamp — single-channel and whole-cell recordings
- Intracellular recording
- Nano probe research
- Scanning Electrochemical Microscopy (SECM)
Specifications
- Analog inputs: up to 8 (±10 V; 0.1–50 kHz per channel)
- Analog outputs: 4 (±10 V)
- Digital outputs: 8 (TTL)
- Aggregate sampling rate: up to 400 kHz
- A/D resolution: 16-bit
- D/A resolution: 16-bit
- USB: High Speed USB 2.0
- Trigger: input and output lines
- Signal compatibility: ±10 V (standard electrophysiology amplifiers)
- Dimensions: 48 cm × 30 cm × 4.5 cm
- Weight: 2.3 kg
- Electrical: 110/240 V, 50/60 Hz
- OS: Windows 10 (64-bit) or later; macOS 10.11 or later
Components
Standard system components
- DENDRITE Dendrite Data Acquisition, Management and Analysis System with SutterPatch® software and Igor Pro® license
Publications
- Dolzer J (2021): Patch Clamp Technology in the Twenty-First Century. In: Dallas M., Bell D. (eds) Patch Clamp Electrophysiology. Methods in Molecular Biology, vol 2188. Humana, New York, NY. doi:10.1007/978-1-0716-0818-0_2
- Experiments of interest involving Sutter Instrument amplifier systems and SutterPatch® software. PDF list of publications
Models
| Product name | |
|---|---|
| DENDRITE Dendrite™ Data Acquisition, Management, and Analysis System |
