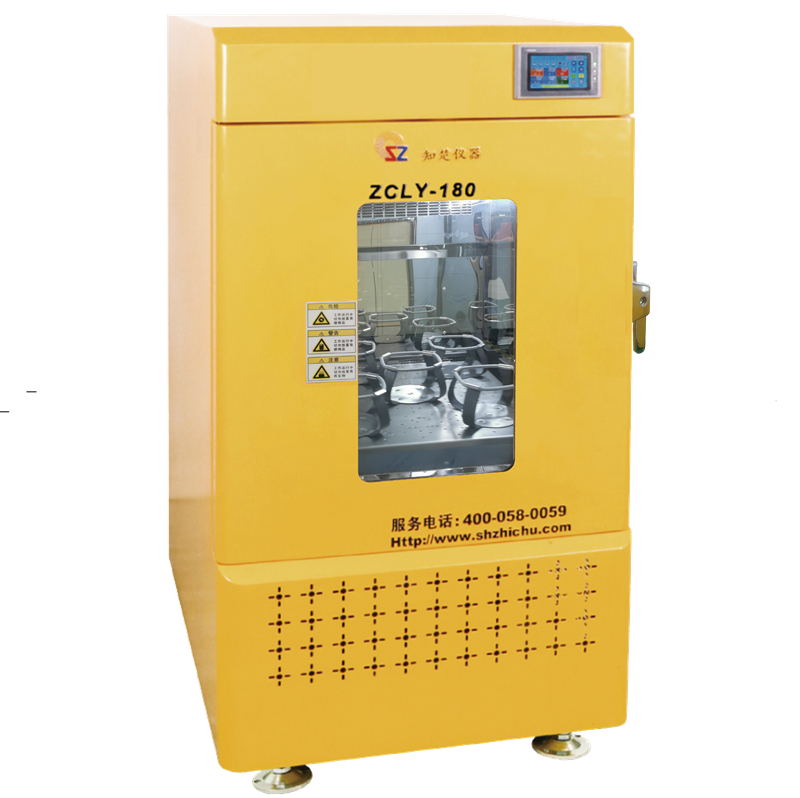

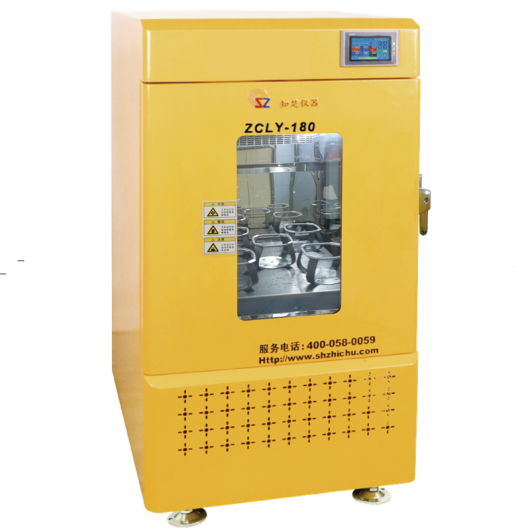

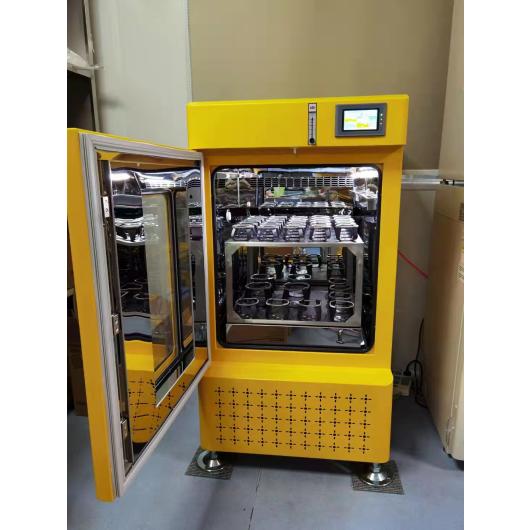

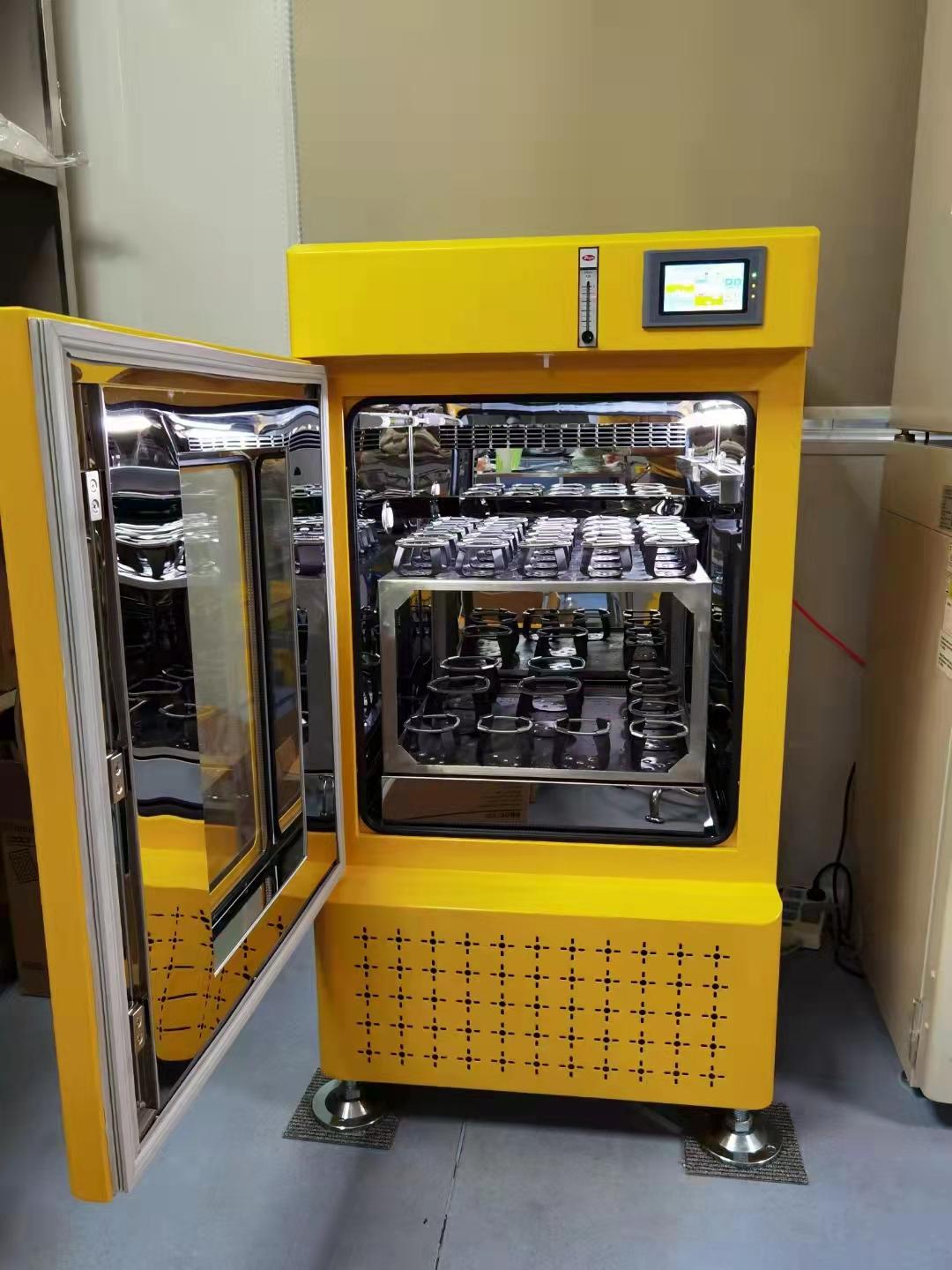

Floored refrigerated incubator shaker

Drive

• Triple-eccentric Drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.
• The servo motor ensures precise speed control and guarantees high-speed performance and stability.

Safety

• Audible and visible alarms alert the user and shut off heaters in case of setpoint deviation.
• Automatic restart after a power interruption with non-volatile memory keeps studies running smoothly.
• The operation will stop when the door is open for enhanced Safety.

Clean

• SUS304 stainless steel chamber.
• Rounded corners are easy to Clean and prevent bacterial breeding (only for CO2 model ZCLY-180).
• Includes UV sterilization.
• The bottom of the chamber can be washed thoroughly (only for CO2 model ZCLY-180).

Cooling

• High-quality and low-noise CFC-free compressors ensure effective refrigeration and stability.
• Special refrigerating process control technology with adjustable Cooling capacity makes temperature control more accurate (optional).
• The timing frost-removal function, with a timing range of 1 to 89 minutes and a defrost interval of 30 to 600 minutes, ensures long-term operation at low temperatures without ice blockage.

View

• The stainless steel frames with a heating function around the door glass can adjust the temperature as needed (only for CO2 model ZCLY-180).
• Insulating and tempered door glass, along with stainless steel frames with a heating function, effectively prevents condensation and provides a clear View of the culture state without opening the door (only for CO2 model ZCLY-180).
• The touch screen makes parameter setting and Viewing easy (standard for CO2 model ZCLY-180), displaying:
  • The setting temperature, speed, and time, along with real-time temperature, speed, and remaining time, simultaneously.
  • The setting rotation direction (positive or reverse).

Sensor

• The infrared CO2 Sensor automatically measures CO2 concentration with high sensitivity (only for CO2 model ZCLY-180).
• For each shaker, a 20kg CO2 gas bottle can be used for at least 35 days if the door is opened normally and about 145 days if the door remains closed (only for CO2 model ZCLY-180).
• PT-100 temperature Sensor.
• Humidity Sensor (optional).

Data record (only for the touch screen)

• Data memory can store up to 3 months of records.
• Data curves, such as real-time temperature and speed, can be displayed.
• Data can be easily transferred via the USB interface.
• RS-232 or RS-485 interface is optional.

Other features

• Test hole (25mm).
• Embedded blackout curtain, designed for repeated stretching without damage, completely prevents light influence on culture (optional).
• Compliant with FDA 21 CFR Part 11 computerized software system (optional).

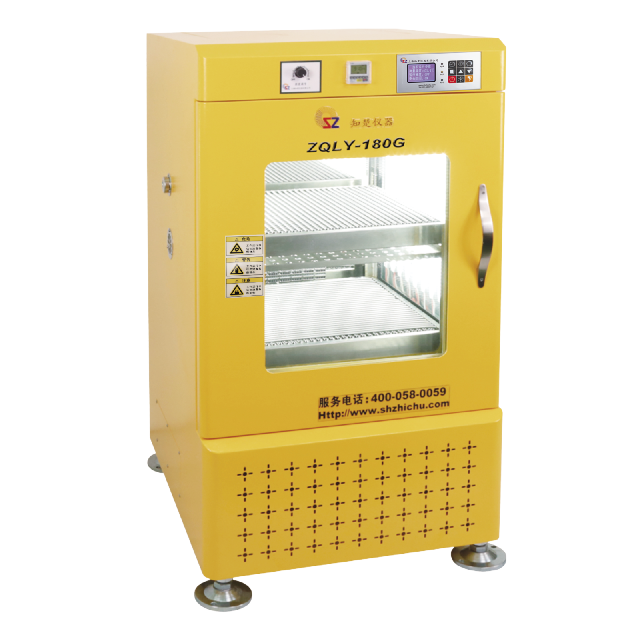

• Photosynthesis lighting system (optional, model ZQLY-180G).
• Mobile and PC remote monitoring (optional).
