High speed Cooling shaker incubator

Stackable

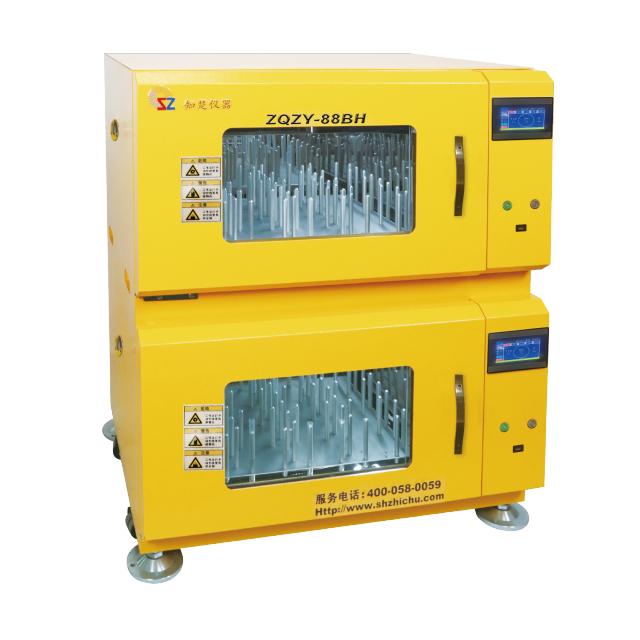

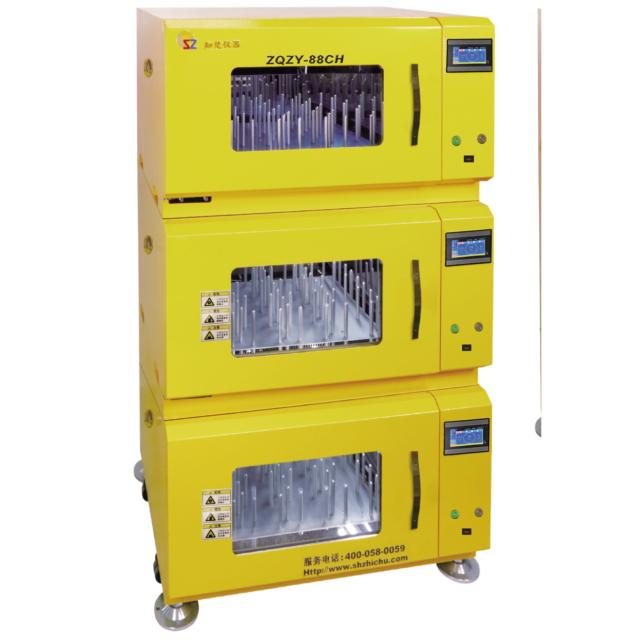

• Stack up to three units high, space-saving, and high-capacity.
• Each machine operates independently.

Drive

• Triple-eccentric Drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.
• The servo motor ensures precise speed control and guarantees high-speed performance and stability.
• One motor and shaking tray (model ZQZY-88A/B/CH, ZCZY-AH/BH/CH)

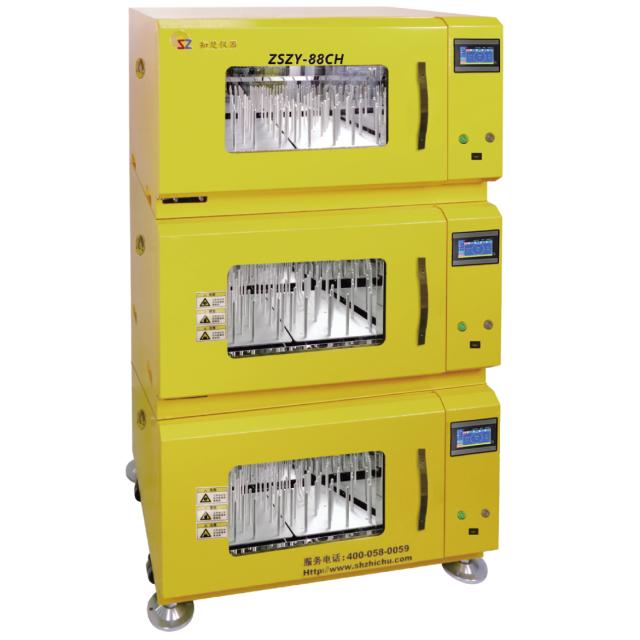

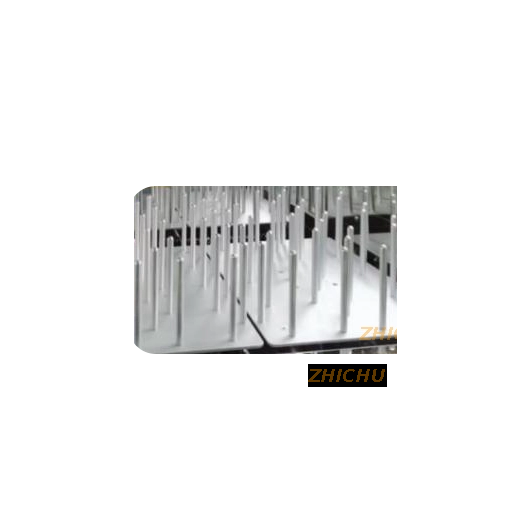

• Two motors and shaking platforms, running separately (model ZSZY-88A/B/CH, ZCZY-ANH/BNH/CNH)

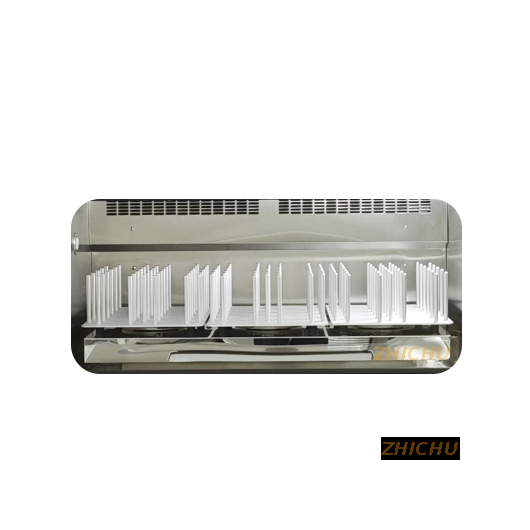

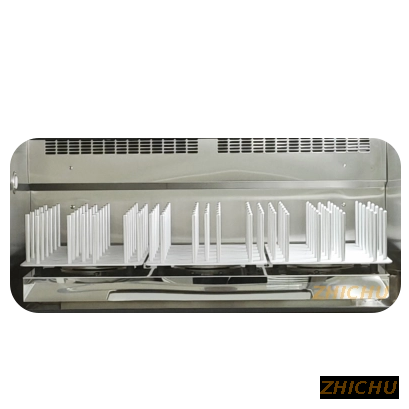

• Three motors and shaking platforms, running separately (model ZQZY-3AS8H/3BS8H/3CS8H)

Safety

• Audible and visible alarms alert the user and shut off heaters when setpoint deviation occurs.
• Automatic restart after a power interruption with non-volatile memory keeps studies running smoothly.
• Operation stops when the door is opened for increased Safety.

Clean

• SUS304 mirror stainless steel interior chamber with rounded corners is easy to Clean and prevents bacterial growth.

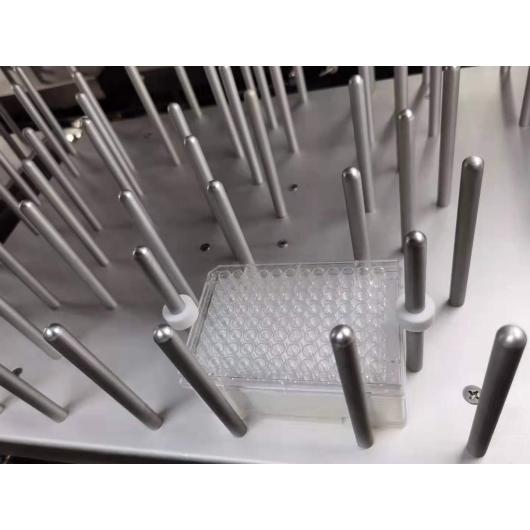

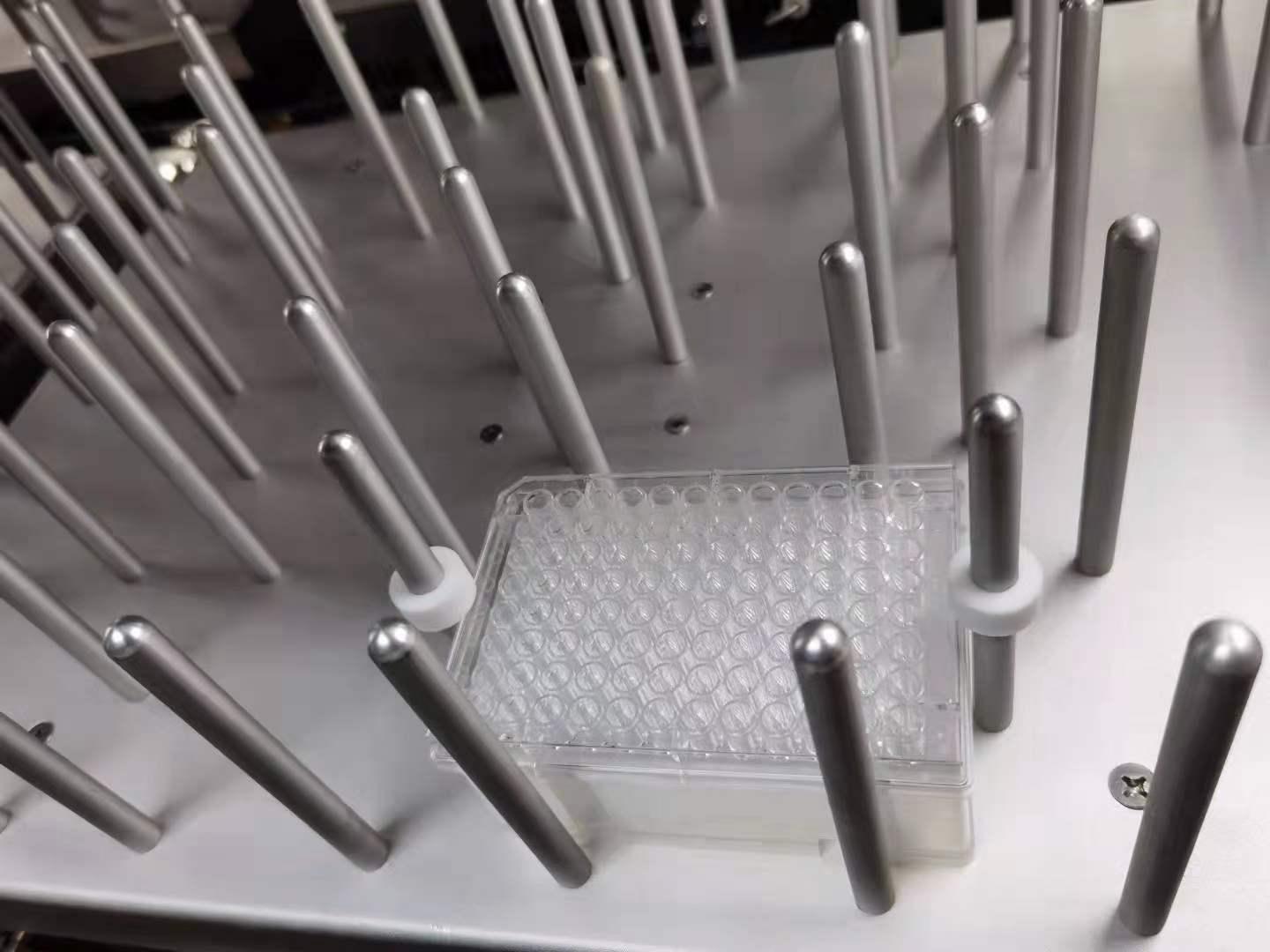

• The slide-out platform provides easy access to all samples.
• Includes UV sterilization.
• The bottom of the chamber can be washed thoroughly.

Cooling

• High-quality, low-noise, CFC-free compressors ensure effective and stable refrigeration.
• Special refrigerating process control technology with adjustable Cooling capacity makes temperature control more accurate. (optional)
• The timing frost-removal function allows a timing range of 1 to 89 minutes, and the defrost interval is adjustable between 30 and 600 minutes, ensuring the machine operates for long periods in low temperatures without ice blockages.

View

• The touch screen allows for easy parameter setting and Viewing, including:
  • Simultaneous display of set temperature, speed, time, real-time temperature, speed, and remaining time.
  • Rotation direction setting: positive or reverse.

Sensor

• PT-100 temperature Sensor
• Humidity Sensor (optional)
• CO₂ Sensor (built-in for ZCZY series)

Data record

• Data memory can record up to three months of data.
• Data curves, such as real-time temperature and speed, can be displayed.
• Data can be easily transferred via a USB interface.
• RS-232 or RS-485 interface is optional.

Other features

• Test hole (25mm)
• Embedded blackout curtain, durable and resistant to damage, completely avoiding light influence on cultures. (optional)
• High-temperature steam automatic humidity control system, ranging from ambient humidity to 90%. (optional)
• Compliant with FDA 21CFR Part 11 computerized software system. (optional)
• Photosynthesis lighting system. (optional)
• Mobile and PC remote monitoring. (optional)
