ZHICHU

Horizontal Cooling shaking incubator

Code ZQWY-200/218/220

Zhichu Horizontal shaker incubator features a triple-eccentric drive for smooth motion, precise servo motor control, and advanced Safety functions, including audible alarms and automatic restart. With a stainless steel chamber, UV sterilization, and optional Cooling, data logging, and remote monitoring, it ensures reliable performance for laboratory applications.

Read more
See other products in applications
Features

Drive

  • The triple-eccentric Drive is precisely counterbalanced to impart smooth, uniform motion to all flasks, regardless of their position on the platform.
  • The servo motor ensures precise speed control and guarantees high-speed performance and stability.

Safety

  • Audible and visible alarms alert the user and shut off heaters in case of setpoint deviation.
  • Automatic restart after a power interruption with non-volatile memory keeps studies running smoothly.
  • The operation will stop when the door is open for enhanced Safety.

Clean

  • The SUS304 mirror stainless steel interior chamber prevents bacterial breeding.
  • Includes UV sterilization.

Cooling

  • High-quality and low-noise CFC-free compressors ensure effective refrigeration and stability.
  • Special refrigerating process control technology with adjustable Cooling capacity makes temperature control more accurate (optional).
  • The timing frost-removal function, with a timing range of 1 to 89 minutes and a defrost interval of 30 to 600 minutes, ensures long-term operation at low temperatures without ice blockage.

View

  • The button screen displays real-time temperature, time, and speed.
  • The touch screen (only for model ZQWY-218) makes parameter setting and Viewing easy, showing:
    • The setting temperature, speed, and time, along with real-time temperature, speed, and remaining time, simultaneously.
    • The setting rotation direction (positive or reverse).

Sensor

  • PT-100 temperature Sensor.

Data record (only for model ZQWY-218)

  • Data memory can store up to 3 months of records.
  • Data curves, such as real-time temperature and speed, can be displayed.
  • Data can be easily transferred via the USB interface.
  • RS-232 or RS-485 interface is optional.

Other features

  • Test hole (25mm).
  • Compliant with FDA 21 CFR Part 11 computerized software system (optional).

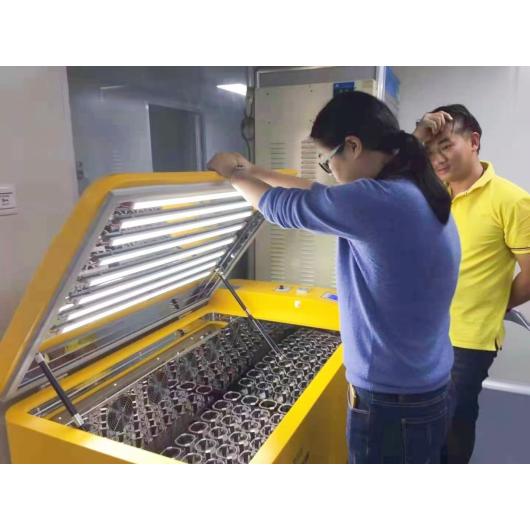

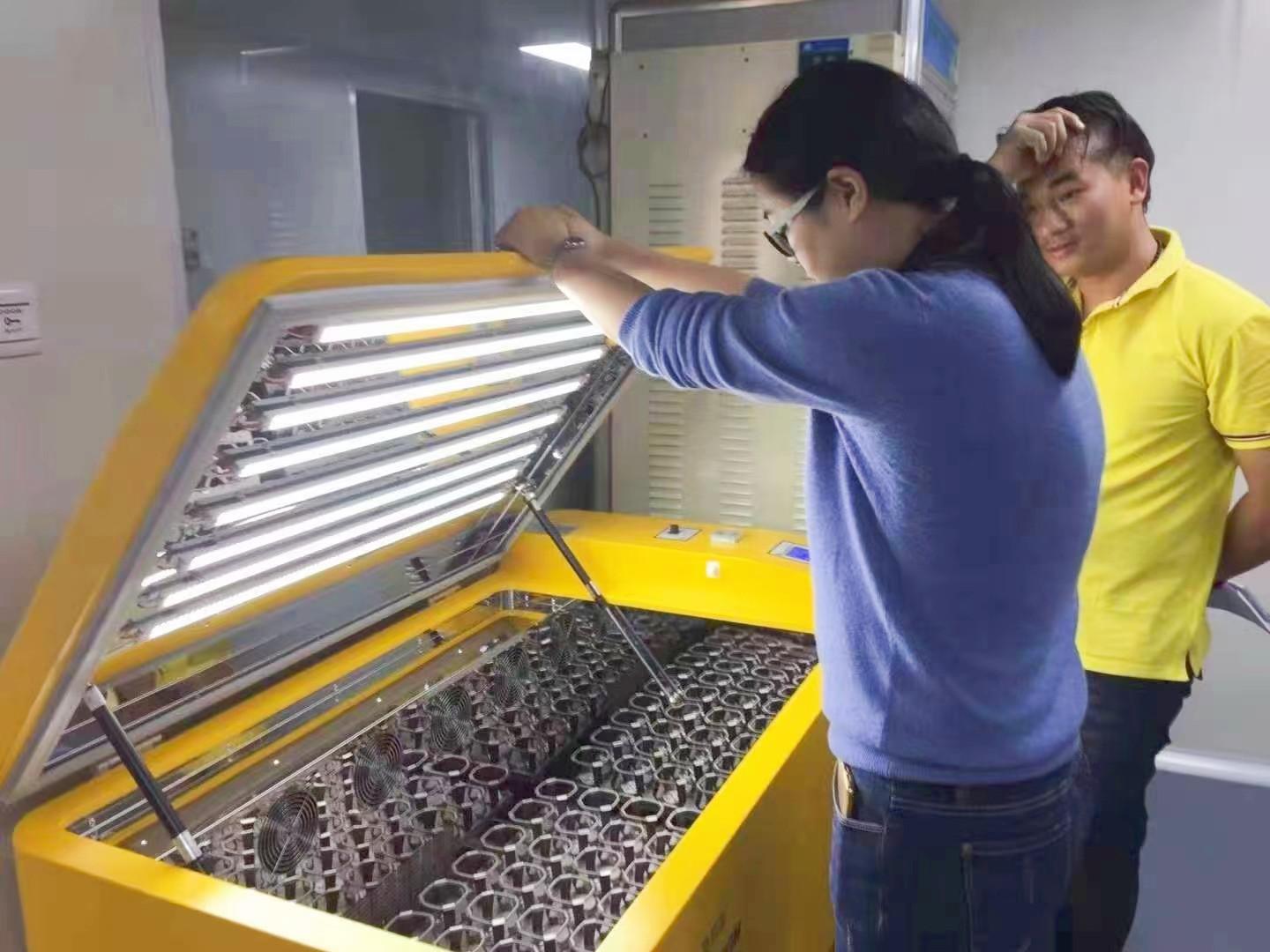

  • Photosynthesis lighting system (optional).
  • Mobile and PC remote monitoring (optional).
Models
Product name

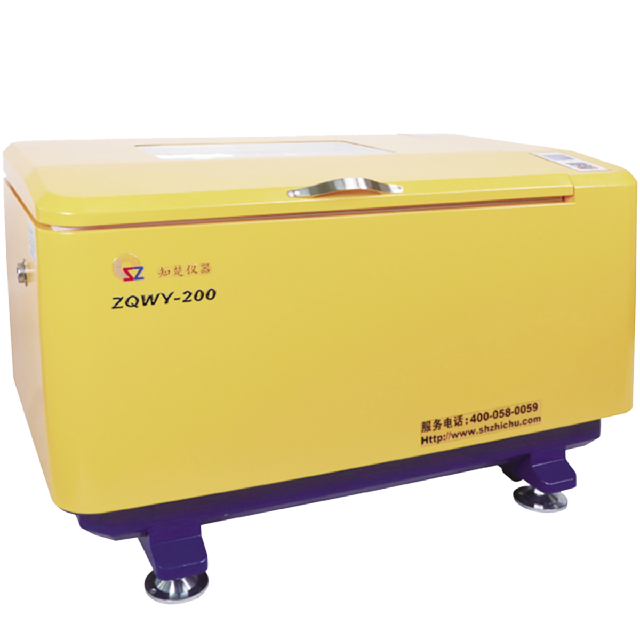

ZQWY-200  Horizontal shaker incubator, 263l, with platform 905x530mm, 10-300rpm, φ26mm, LCD screen with button, 213kg

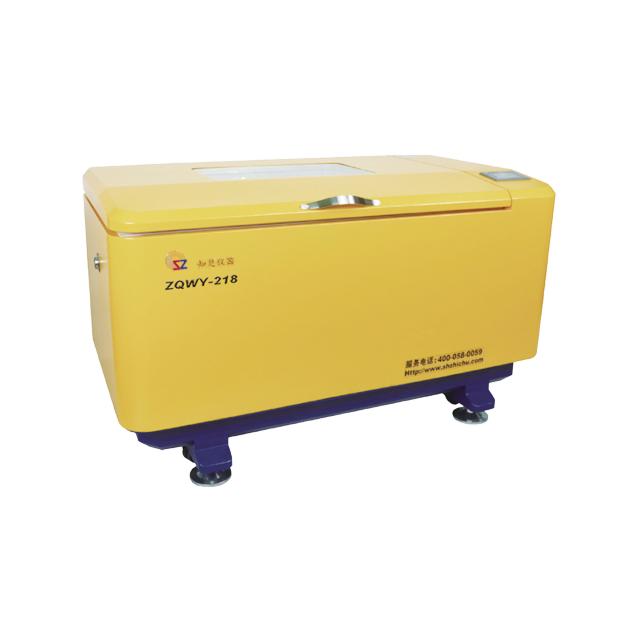

ZQWY-218  Horizontal shaker incubator, 398l, with platform 1050x530mm, 10-300rpm, φ26mm, 4,3" LCD touch screen, 232kg

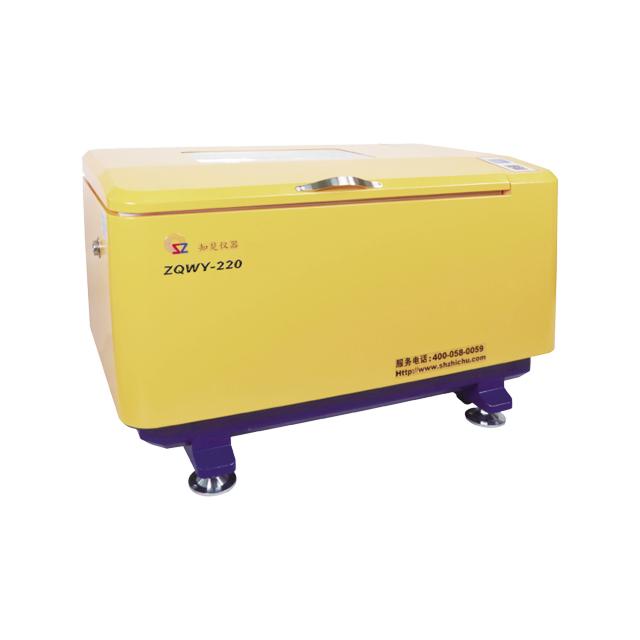

ZQWY-220  Horizontal shaker incubator, 466l, with platform 905x630mm, 10-300rpm, LCD screen with button, 314kg
