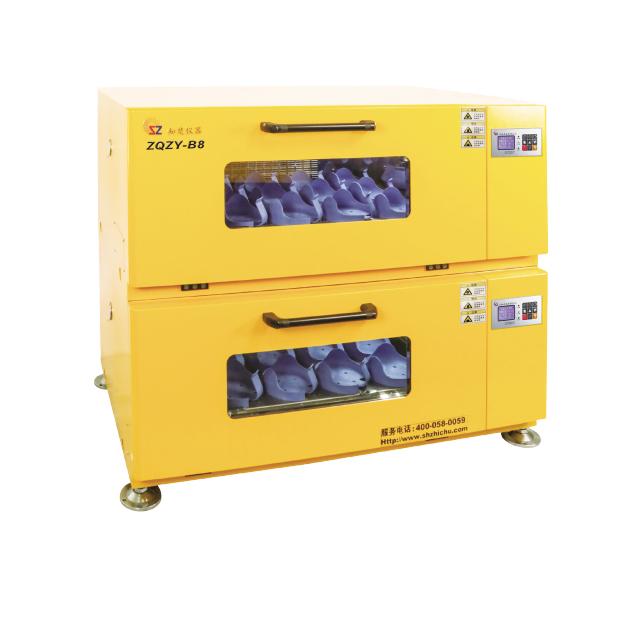

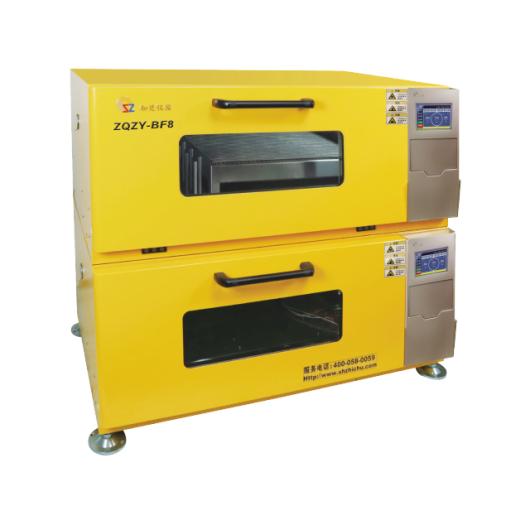

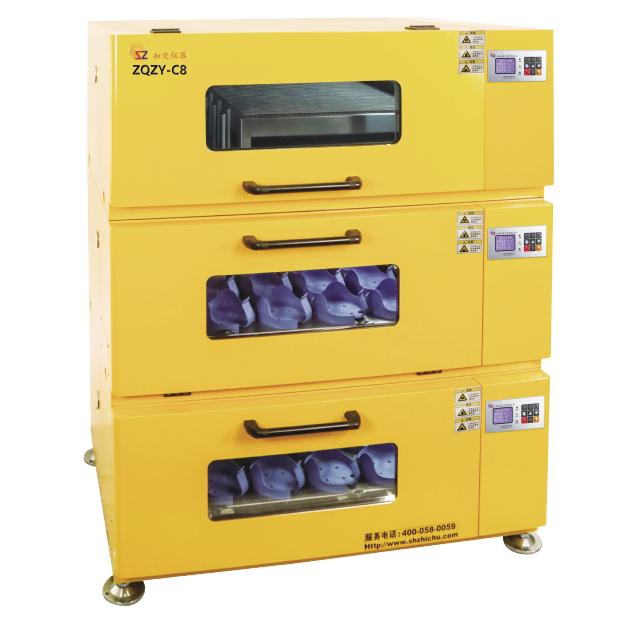

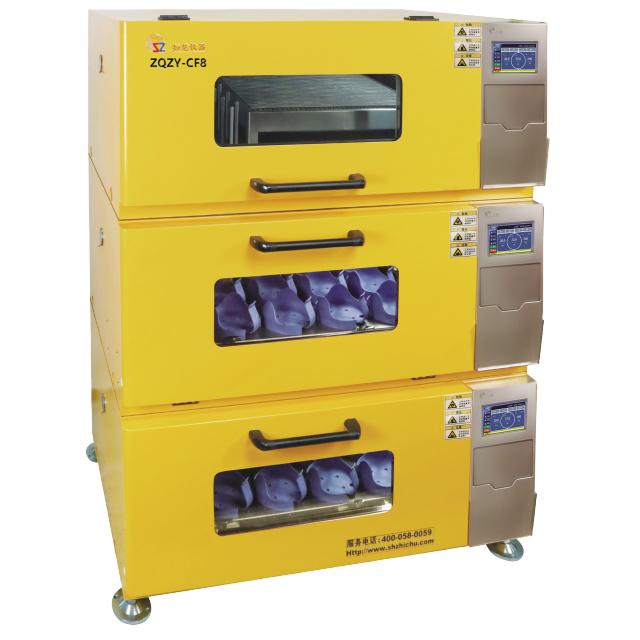

Large refrigerated incubator shaker

Stackable

• Stack up to three units high, space-saving, and high-capacity.
• Each machine operates independently.

Drive

• Triple-eccentric Drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.
• The brushless DC motor ensures precise speed control and guarantees high-speed performance and stability.
• Reciprocating shaking (built-in ZQZY-A/B/CF8W).

Safety

• Audible and visible alarms alert the user and shut off heaters in case of setpoint deviation.
• Automatic restart after a power interruption with non-volatile memory keeps studies running smoothly.
• Operation stops when the door is opened, ensuring Safety.

Clean

• Mirror SUS304 stainless steel interior chamber with rounded corners is easy to Clean and prevents bacterial breeding.
• The slide-out platform provides easy access to all samples.
• Equipped with UV sterilization.

Cooling

• High-quality and low-noise CFC-free compressors ensure effective and stable refrigeration.
• Special refrigerating process control technology with adjustable Cooling capacity makes temperature control more accurate.
• A timing frost-removal function, with a timing range of 1 to 89 minutes and a defrost interval of 30 to 600 minutes, ensures long-term operation at low temperatures without ice blockage.

View

• The stainless steel frames with a heating function around the door glass allow temperature adjustments as needed (optional).
• Insulating and tempered door glass, along with stainless steel frames with a heating function, effectively prevent condensation and provide a clear View of the culture state without opening the door (only for model ZQZY-A/B/CS8/9).
• A touch screen makes parameter setting and Viewing easy (except ZQZY-A/B/C8), including:
  • Simultaneous display of set temperature, speed, time, and real-time values.
  • Rotation direction settings: positive or reverse.

Sensor

• PT-100 temperature Sensor.
• Humidity Sensor (optional).

Data record (except ZQZY-A/B/C8)

• Data memory can store more than 600,000,00.00 datas.
• Data curves, such as real-time temperature and speed, can be displayed.
• Data can be easily transferred via a USB interface.
• RS-232 or RS-485 interface is optional.

Other features

• Test hole (25mm).
• Embedded blackout curtain, stretchable and highly durable, completely prevents light interference with culture (optional).
• High-temperature steam automatic humidity control system, adjustable from ambient humidity to 90% (optional).
• Compliant with FDA 21 CFR Part 11 computerized software system (optional).
• Photosynthesis lighting system (optional).
• Mobile and PC remote monitoring (optional).
