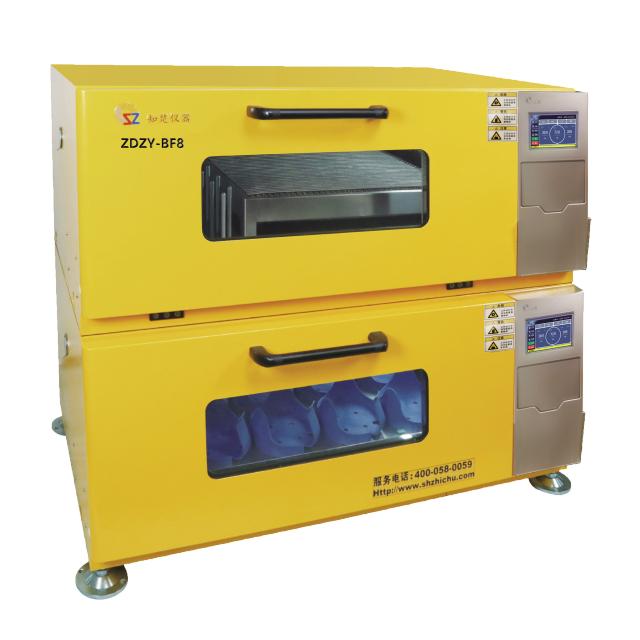

Large stackable shaker incubator

Stackable

• Stack up to 2 units high, space-saving and high-capacity.
• Larger capacity of 2 units for 5L*16 pcs Erlenmeyer flasks.
• Each machine operates independently.

Drive

• Triple-eccentric Drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.
• The servo motor ensures precise speed control and guarantees high-speed performance and stability.

Safety

• Audible and visible alarms alert the user and shut off heaters in case of setpoint deviation.
• Automatic restart after a power interruption with non-volatile memory keeps studies running smoothly.
• Operation stops when the door is opened, ensuring greater Safety.

Clean

• SUS304 stainless steel interior chamber with rounded corners is easy to Clean and prevents bacteria breeding.
• A slide-out platform provides easy access to all samples.
• Equipped with UV sterilization.

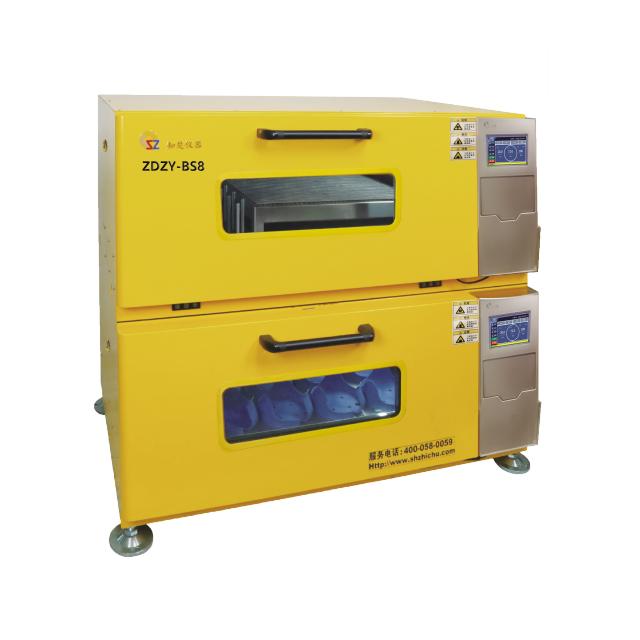

• The bottom of the chamber can be washed thoroughly (only for model ZDZY-AS8/BS8).

Cooling

• High-quality, low-noise, CFC-free compressors ensure effective and stable refrigeration.
• Special refrigerating process control technology with adjustable Cooling capacity makes temperature control more accurate (only for model ZDZY-AS8/BS8).
• The timing frost-removal function, with a timing range of 1 to 89 minutes and a defrost interval adjustable between 30 and 600 minutes, ensures the machine operates for long periods at low temperatures without ice blockage.

View

• The stainless steel frames with a heating function around the door glass can adjust the temperature as needed (optional).
• Insulating and tempered door glass, along with the stainless steel frames with a heating function, effectively prevents condensation and provides a clear View of the culture state without opening the door (only for model ZDZY-AS8/BS8).
• The touch screen interface allows easy parameter setting and Viewing, including:
  • Simultaneous display of set temperature, speed, time, real-time temperature, speed, and remaining time.
  • Setting the rotation direction to positive or reverse.

Sensor

• PT-100 temperature Sensor.
• Humidity Sensor (optional).

Data record

• Data memory can record more than 600,000,00.00 datas.
• Data curves, such as real-time temperature and speed, can be displayed.
• Easy data transfer via USB interface.
• RS-232 or RS-485 interface is optional.

Other features

• Test hole (25mm).
• An embedded blackout curtain, designed for repeated stretching and high durability, completely avoids light influence on culture (optional).
• A high-temperature steam automatic humidity control system, ranging from ambient humidity to 95% (optional).
• Compliant with FDA 21CFR Part 11 computerized software system (optional).
• Photosynthesis Lighting System (optional).
• Mobile and PC remote monitoring (optional).
