Instech
Mouse two-channel infusion
Infuse two compounds into separate vessels simultaneously using a two-channel Vascular Access ButtonTM connected to a two-channel swivel and two syringe pumps.
For studies that require two compounds to be infused simultaneously into separate vessels, use a two-channel Vascular Access Button™ connected to a two-channel swivel and two syringe pumps.
In this example we are using 2 catheters that fit 25ga connectors on the VAB. 22ga or 22/25ga connections are also available.

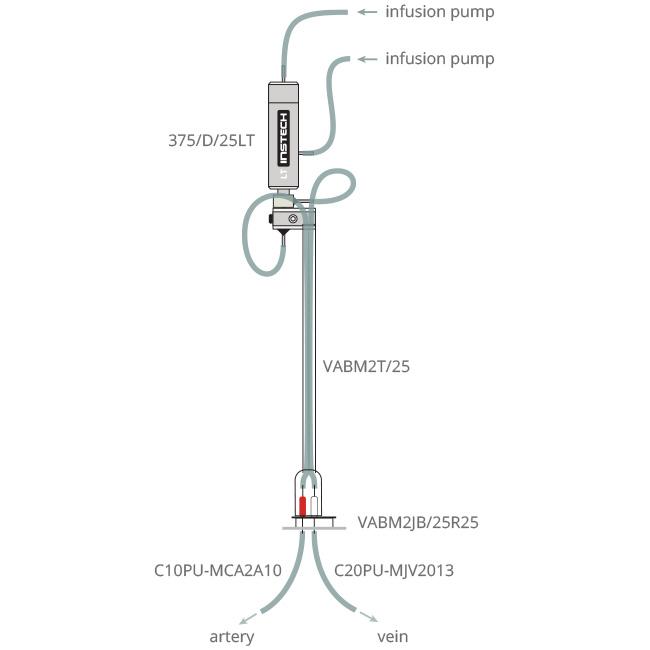

See below for a typical application setup with a list of components. If you need any assistance in selecting other setup parts, please don't hesitate to contact the Animalab team.
See other products in applications
Components
Standard system components
- C20PU-MJV1617 Catheter for mouse jugular vein, PU 2Fr 10cm, collar @ 1.3cm, round tip, 25ga luer stub.
- C10PU-MCA1459 Catheter for mouse carotid artery, 1 to 2Fr, 8cm, square tip, collar @ 0.9cm. Fits 25ga
- VABM2T/25 Tether for 2 channel mouse VAB/VAH, 7in
- 375/D/25LT Low-torque dual channel swivel, 25ga
- SMCLA Counter-balanced lever arm for mice, 3.5in (9cm)
- BTCOEX-25 Co-extruded PE/PVC tubing for 25ga, .017x.051in, non-sterile, 30m spool
- LS25 Luer stub, 25ga (red) x 0.5in (12mm), non-sterile
- HA1100 Pump 11 Elite infuse-only single syringe pump (704500)
- USP-HS-020-1-NJ1P-50 Sterile catheter flush solution, heparin (20 USP units/mL) in 0.9% saline, 50 pcs (10 packs of 5) 1mL in 1mL syringe, PinPort injector
- USP-S-1-BD1P-50 Sterile catheter flush solution, 0.9% saline, 50 pcs (10 packs of 5) 1mL in 1mL syringe, PinPort injector
