Sutter Instrument
P-1000 Flaming/Brown Micropipette Puller
Code P-1000
The P-1000 is Sutter Instrument's next-generation Flaming/Brown micropipette puller, featuring a color touchscreen display, built-in Pipette Cookbook with 100+ pre-designed programs, ThermoLock™ jaw pre-heating, Safe Heat Mode, and comprehensive diagnostics. Pulls all glasses except quartz; tip diameters 0.06–3 µm.
Read more
See other products in applications
Features

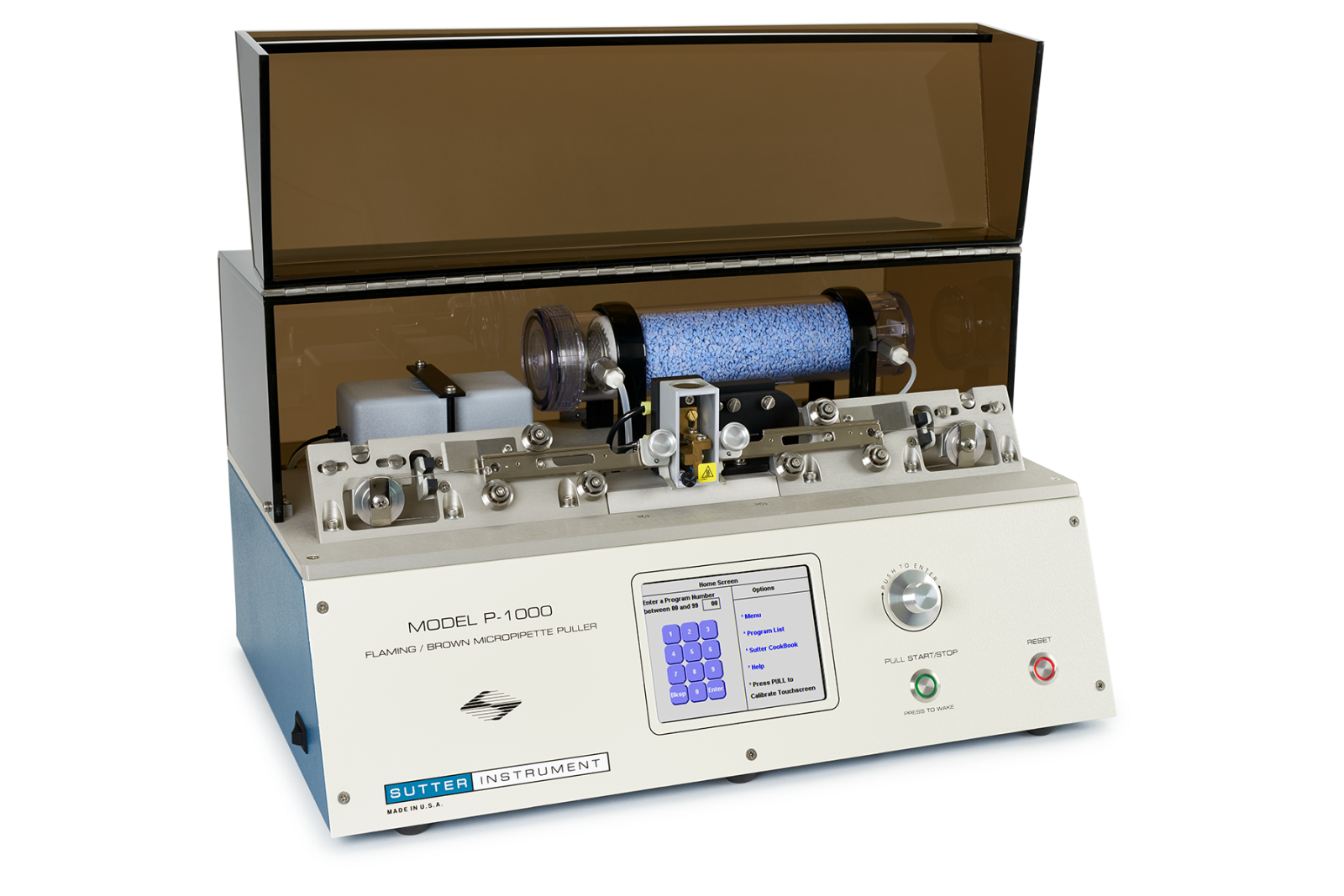

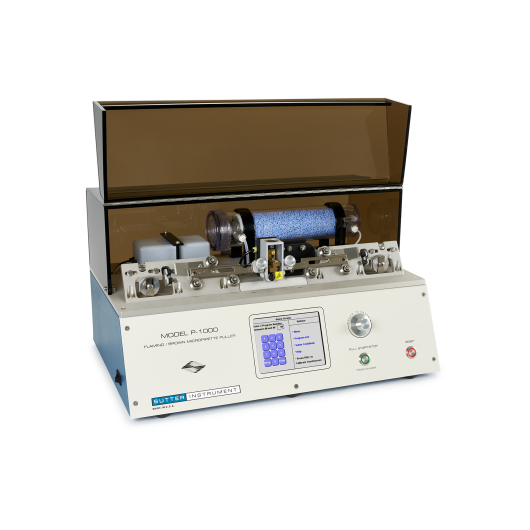

P-1000 — The Next Generation Flaming/Brown Micropipette Puller
The P-1000 Flaming/Brown Micropipette Puller from Sutter Instrument represents the evolution of the world's most widely used micropipette puller technology. Built on the proven velocity-sensing Flaming/Brown mechanism and enhanced with advanced features, the P-1000 delivers maximum reproducibility and ease of use for pulling borosilicate, aluminosilicate, and other non-quartz glasses.
Innovative Interface
- Color touchscreen display — intuitive, full-featured interface for programming and monitoring
- Built-in Sutter Pipette Cookbook — over 100 pre-designed programs; simply select your glass, filament type, and pipette application
- Copy & paste functions for rapid program creation; Line Repeat mode simplifies multi-line programming
- Rotary dial available as alternative to touchscreen for numerical entry
Key Features
- Velocity-sensing (patented) — indirectly senses glass viscosity for reproducible results across all non-quartz glasses, including difficult aluminosilicate formulations
- ThermoLock™ Pre-Heat Mode — actively heats and controls jaw temperature before each pull for maximum program-to-program consistency
- Safe Heat Mode — prevents filament burnout by limiting heat settings
- Humidity Control Chamber — filament area purged with dry air before and after each pull to minimize environmental variability
- 100 program storage with 4 command lines per program and Line Repeat function
- Ramp Test stored per program — easy heat calibration and filament protection
- Jaw Temperature Sensor — monitors filament block temperature
- Comprehensive diagnostics: air pressure, filament burnout detection, pull results display
- Built-in glossary and help topics for on-site troubleshooting
- Quality control: every P-1000 is run-in for 48 hours (2,800+ pull cycles); 7 pipettes examined by SEM before shipment
- Produces 2 identical pipettes per pull; tip diameters 0.06–3 µm; max taper 2 cm
- Max glass OD: 4 mm; compatible with borosilicate and aluminosilicate glass
Applications of P-1000 Puller
- Patch clamp pipette fabrication
- Intracellular recording electrodes
- Microinjection and microaspiration needles (ICSI, ES cells)
- Microperfusion capillaries
- Cell transfer and manipulation
Specifications
- Heat source: Platinum filament with Safe Heat Mode
- Glass type: Borosilicate and aluminosilicate (all non-quartz glasses)
- Max glass OD: 4 mm
- Tip size: 0.06–3 µm
- Max taper length: 2 cm
- Programs: 100 programs × 4 command lines + Line Repeat Mode
- Cooling: Compressed dry air with Humidity Control Chamber
- Usable pipettes / pull: 2
- Display: Color touchscreen
- Electrical: 115/230 V, 50/60 Hz
- Dimensions (H×W×D): 53 × 36 × 30 cm (21 × 14 × 12 in)
- Weight: 18.6 kg (41 lb)
- Certification: CE
Components
Standard system components
- P-1000 P-1000 Flaming/Brown Micropipette Puller System with FB255B filament, Sutter Pipette Cookbook (hard copy), glass sample box (BF100-50-10, BF150-110-10, BF150-86-10), manual
Models
| Product name | |
|---|---|
| P-1000 P-1000 Flaming/Brown Micropipette Puller System |
