Rat continuous infusion

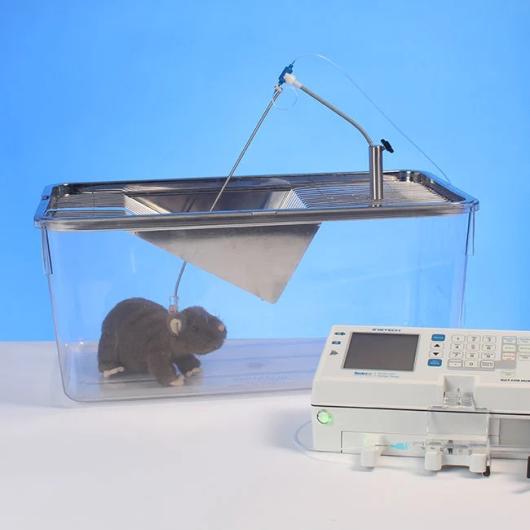

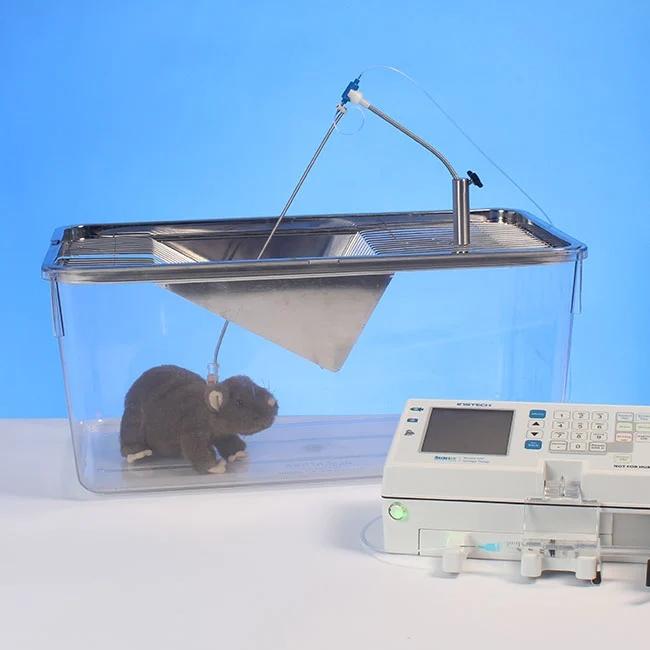

Continuous infusion through a swivel and tether.

Rat infusion is the most common application for our equipment. A basic system includes a catheter, a Vascular Access Button™ for exteriorization, a swivel and tether system to protect the fluid line and allow the animal to move freely, and an infusion pump.

If your institute does not have a surgeon on site, in many parts of the world Charles River can implant the catheter and Vascular Access Button™ as a surgical service so that the animals arrive at your lab recovered from surgery and ready for use.

In this example we are showing a jugular vein catheter, but any other administration site that can be catheterized is a possibility as well, such as femoral vein, carotid artery, intragastric and intrathecal.

For GLP infusion studies, use infusion pumps with modern occlusion alarms to be sure that the dose was delivered properly.

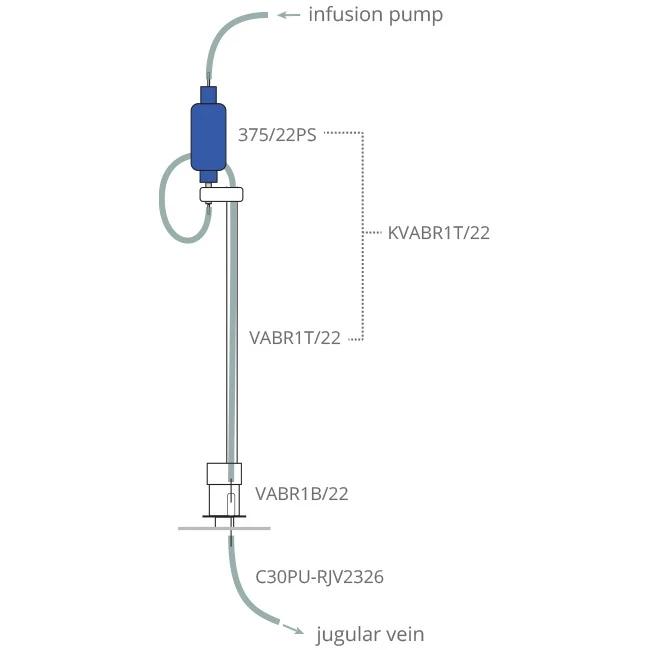

See below typical application setup containing component list. If need any support to choose other setup parts, don't hesitate contact Animalab team.


Read more about product
See other products in applications
Components
Standard system components
  • HA1100 Pump 11 Elite infuse-only single syringe pump (704500)
  • CM375KRP Snap-in spring swivel arm for rat shoebox cage top and plastic swivel
  • KVABR1T/22 Rat 1ch magnetic VAB tether kit: VABR1T/22, 375/22PS, 24in CoEx, LS22
  • VABR1B/22 Vascular Access Button for rat, magnetic, 1 channel 22ga (white port), injector
  • C30PU-RJV2326 Catheter for rat jug vein, PU 3Fr 20cm, 2.6cm insertion length (a2.4), rounded tip. 22ga luer stub
  • PNP3M PinPort injectors, 50 sterile pouches of 5 (250 pcs)
  • USP-HS-020-1-NJ1P-50 Sterile catheter flush solution, heparin (20 USP units/mL) in 0.9% saline, 50 pcs (10 packs of 5) 1mL in 1mL syringe, PinPort injector
  • USP-S-1-BD1P-50 Sterile catheter flush solution, 0.9% saline, 50 pcs (10 packs of 5) 1mL in 1mL syringe, PinPort injector
