Rat continuous infusion plus blood sampling

A two-channel system for continuous infusion on one channel and low-stress blood sampling on the second.

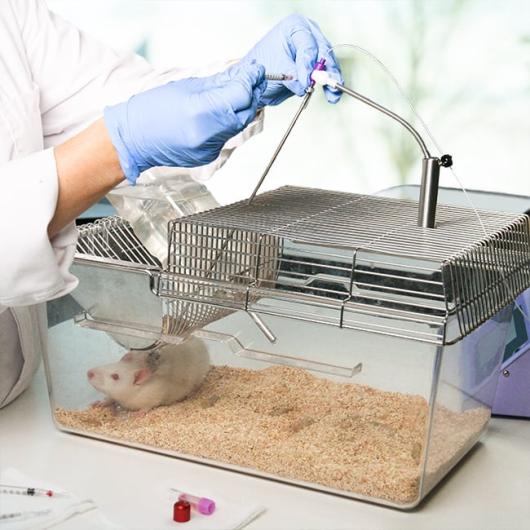

Catheterize two separate vessels and use a two-channel system to collect manual blood samples outside the cage without touching the animal, all while infusing continuously through a swivel.

The blood collection line uses PE/PVC tubing for minimal evaporation and terminates in a PinPort™ for simple, clean access with a syringe fitted with a PNP3M injector or a Sarstedt capillary collection tube with a PNP3MS connector (arterial pressure is required for capillary collection tubes).

If you are already performing surgery to place the IV dosing catheter, why not take the simple extra step of placing a blood sampling catheter to avoid the pain, stress and labor of peripheral bleeds?

If your institute does not have a surgeon on site, in many parts of the world Charles River and Envigo can implant the catheters and two-channel Vascular Access Button™ as a surgical service so that the animals arrive at your lab recovered from surgery and ready for use.

You can take this system a step further by connecting the blood sampling line through a two-channel swivel to an automated blood sampler.

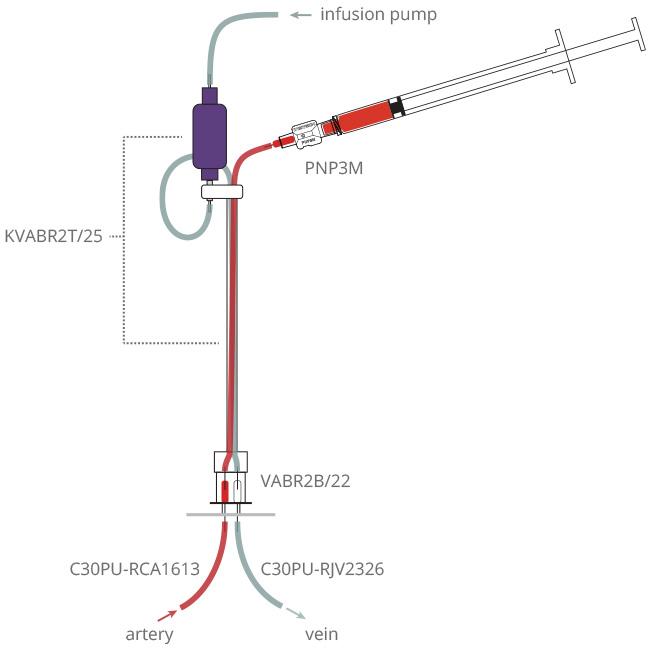

See below for a typical application setup with a list of components. If you need any assistance in selecting other setup parts, please don't hesitate to contact the Animalab team.
