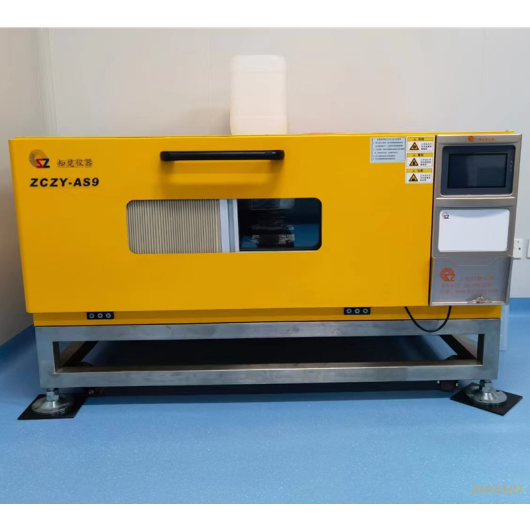

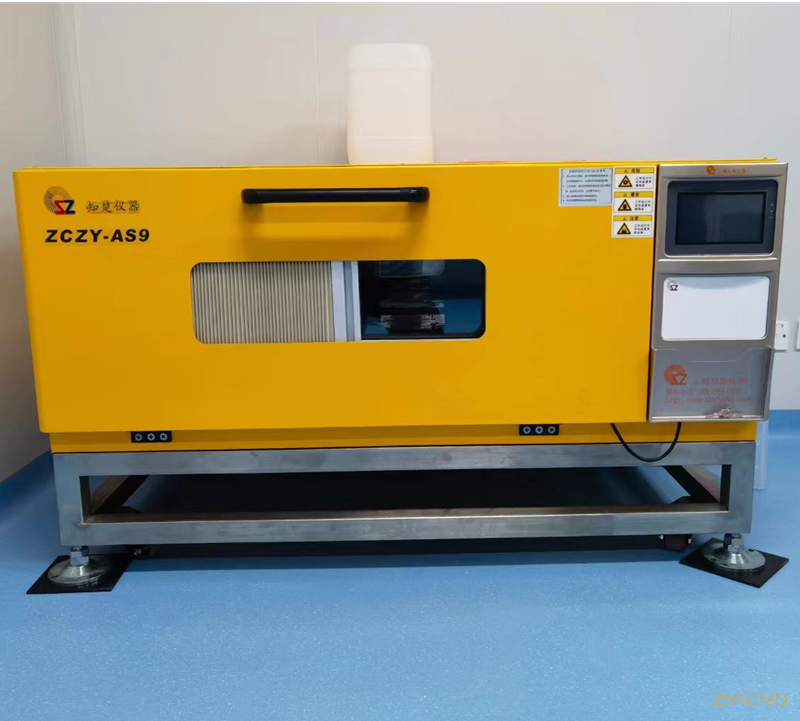

Shaking CO2 incubator

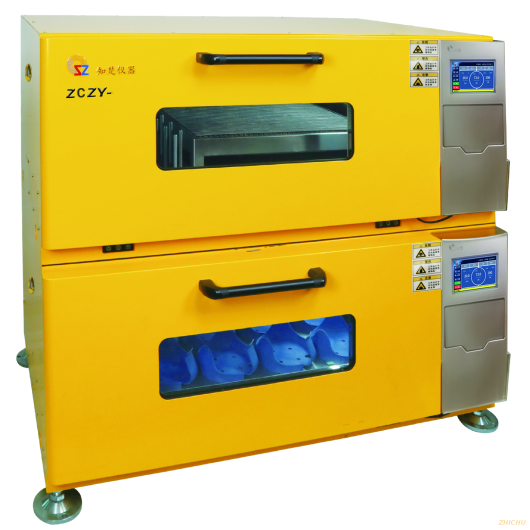

Stackable

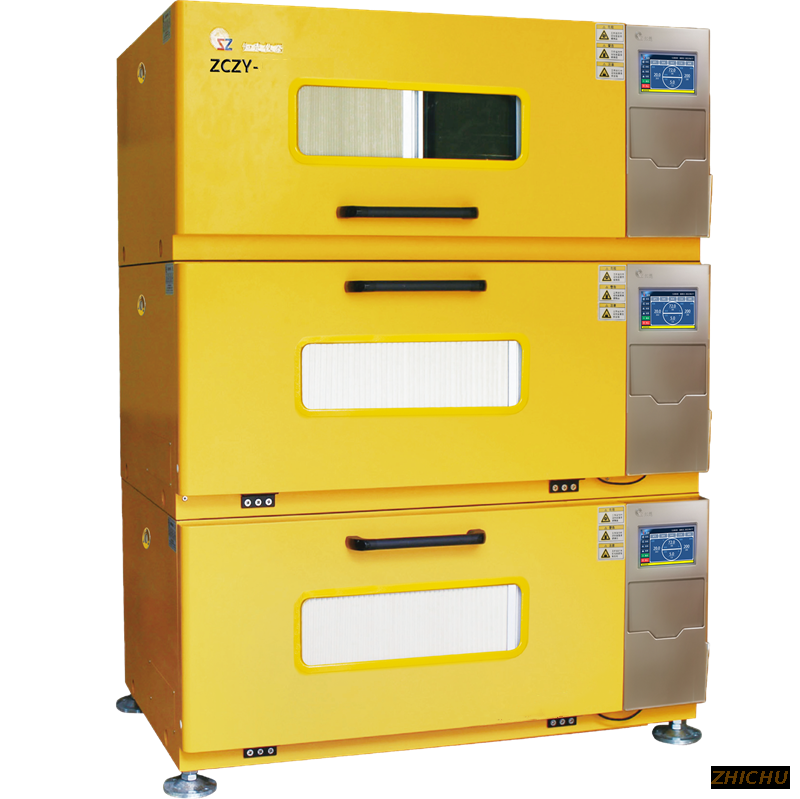

• Stack up to three units high, space-saving and high-capacity.
• Each machine operates independently.

Drive

• Triple-eccentric Drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.
• Servo-motor makes speed control precise and ensures high-speed performance and stability.

Safety

• Audible and visible alarms alert the user and shut off heaters in case of setpoint deviation.
• Automatic restart after power interruption with non-volatile memory keeps studies running smoothly.
• The machine stops running when the door is open, making it safer.

Clean

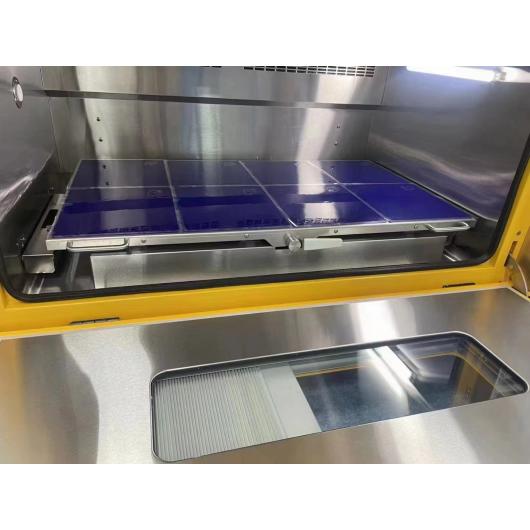

• Antibacterial stainless steel interior chamber with rounded corners is easy to Clean and prevents bacteria from breeding.

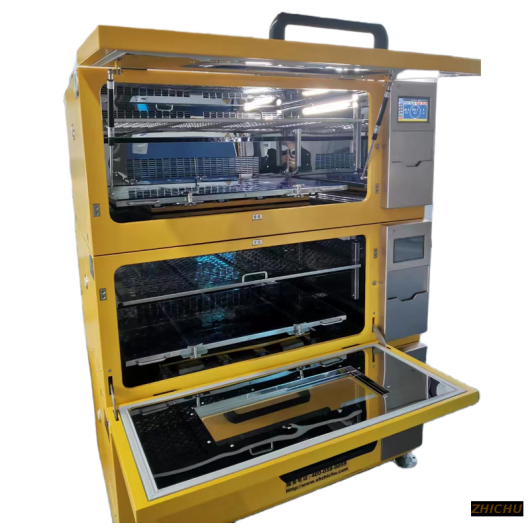

• Glides-up door with a non-screw design and slide-out platform provide easy access to all samples.
• With UV sterilization.
• The bottom of the chamber can be washed thoroughly.

Cooling

• High-quality and low-noise CFC-free compressors ensure effective and stable refrigeration.
• Special refrigerating process control technology with adjustable Cooling capacity makes temperature control more accurate.
• Timing frost-removing function, with a timing range of 1 to 89 minutes and a defrost interval of 30-600 minutes adjustable, ensures the machine operates for a long time at low temperatures without ice blockage.

View

• The stainless steel frames with a heating function around the door glass can adjust the temperature as needed.
• Insulating and tempered door glass, as well as the stainless steel frames with a heating function, effectively prevent condensation and provide a clear View of the culture state without opening the door.
• Touch screen makes parameter setting and Viewing easy, such as:
  • The setting temperature, speed, and time, as well as the real temperature, speed, and remaining time, are shown simultaneously.
  • Setting rotation direction to positive or reverse.

Sensor

• Infrared CO₂ Sensor measures the CO₂ concentration automatically with high sensitivity.
• For each shaker, a bottle of CO₂ gas (20kg) can be used for no less than 35 days if the door is opened normally and about 145 days when the door remains closed.
• PT-100 temperature Sensor.
• Humidity Sensor (optional).

Data record

• Data memory can record more than 600,000,000.00 datas.
• Data curves, such as real-time temperature and speed, can be displayed.
• Data can be easily transferred through the USB interface.
• RS-232 or RS-485 interface is optional.

Other features

• Embedded blackout curtain, stretchable and durable, completely avoids light influence on culture. (Model ZCZY-A/B/CS9/SE)
• High-temperature steam automatic humidity control system, ranging from ambient humidity to 90%. (Model ZCZY-A/B/CS9/SE)
• Compliant with FDA 21CFR Part 11 computerized software system (optional).
• Photosynthesis lighting system (optional).
• Mobile and PC remote monitoring (optional).
