witeg

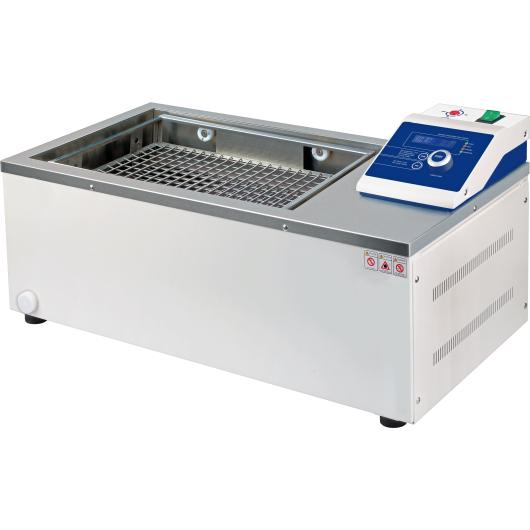

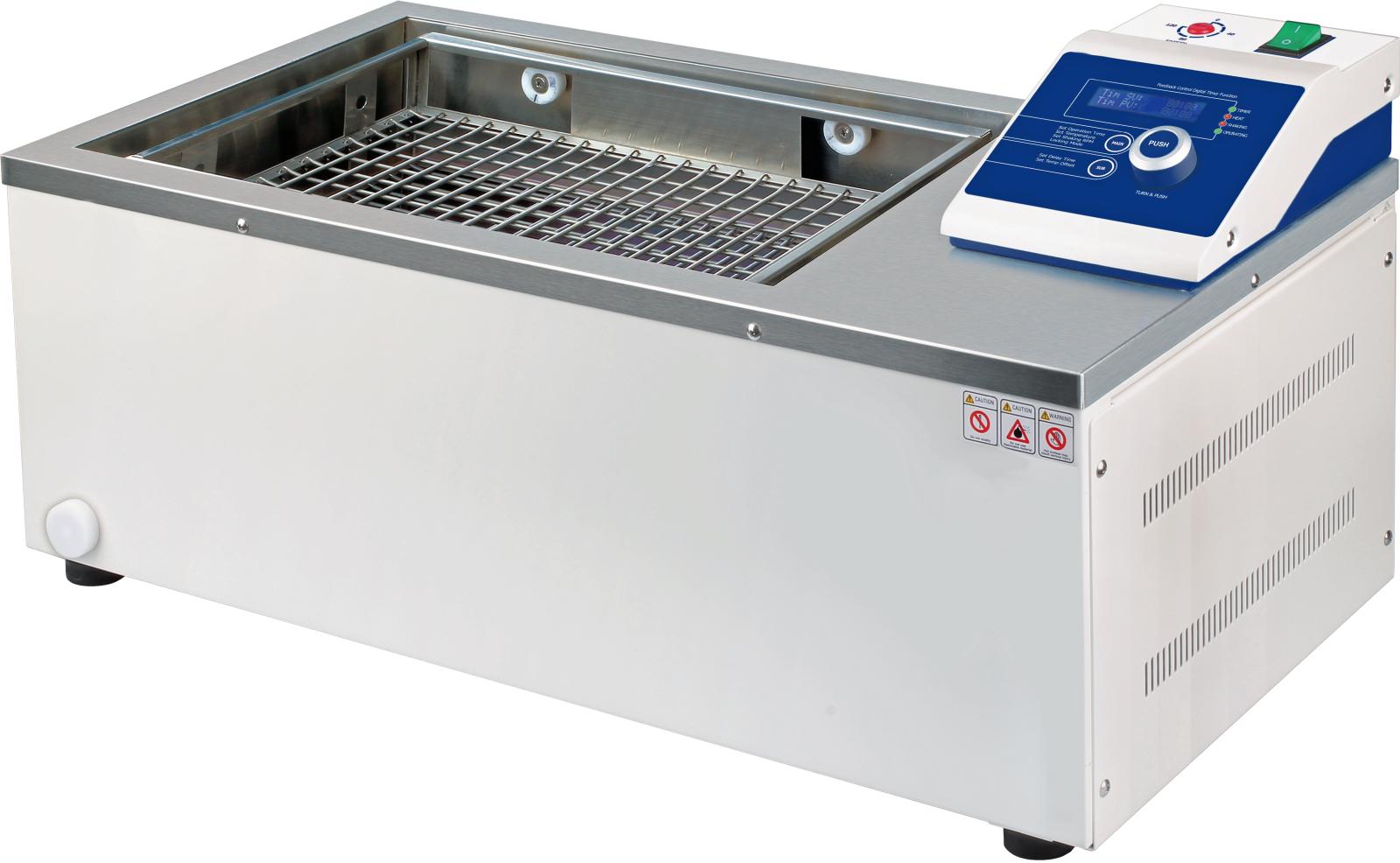

Shaking water bath 45l, up to 100°C
Code DH.WSB03045
High-capacity 45L system (900×410×380 mm) for large-volume industrial and laboratory applications, supporting direct immersion of samples for shaking. Designed for hybridization applications, cell cultures, cell aeration, increasing solubility rates, molecular biology assays, and bacterial cultures. Robust 1.4 kW engine maintains stable shaking performance under full load, with a reinforced stainless steel bath and programmable timer (99h59min) for extended experiments.
Read more about product
See other products in applications
Features
- Stainless steel interior and bath, powder-coated steel body, double painted & baked body, 20 mm polyurethane-insulation
- High-performance shaking engine ensures best smoothly shaking motion, minimum noise and vibration
- Universal stainless steel spring rack included: for various kind of flasks and tubes (up to 2l), easy to disassemble
- User‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
- Drain valve mounted
- Backlight LCD display
- CE certified and unique serial number for tracing
Safety mechanism
- Overheat and over-current protection
- Sensor error detection
Controller
- Jog-Dial controller (turn + push)
- Digital feedback controller for precise speed control
- Digital fuzzy controller for precise temperature control
Specifications
- Max. quantity of Erlenmeyer flasks: 18 x 250 ml, 15 x 500 ml, 8 x 1000 ml
- Inner dimensions (W x D x H): 600 x 380 x 200 mm
- Outer dimensions (W x D x H): 863 x 433 x 340 mm
- Weight with packaging: 32 kg
- Capacity: 45 l
- Shaking speed: 20 - 250 rpm, 1 rpm-display, 1 rpm-control
- Shaking stroke: 20 mm (other strokes on request)
- Power consumption: 2400 W
- Temperature range: Room temperature +5°C - 100°C
- Temperature fluctuation: ±0.5°C at -20°C
- Temperature accuracy: ±0.1°C
- Packing size: 920 x 500 x 450 mm
- Controller: Temperature sensor PT100
