witeg
Viscosity bath, 100°C
Code DH.WVB01030

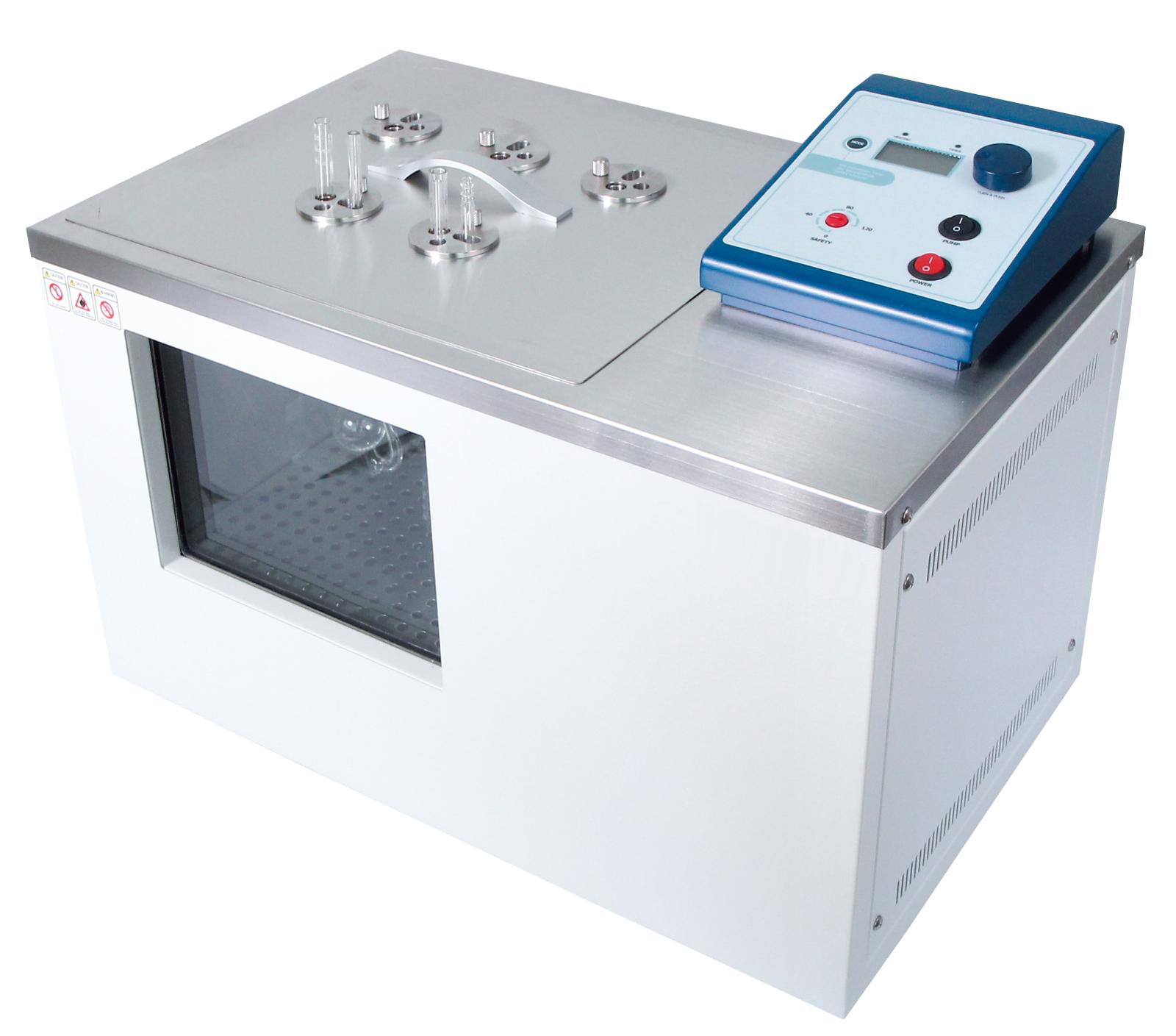

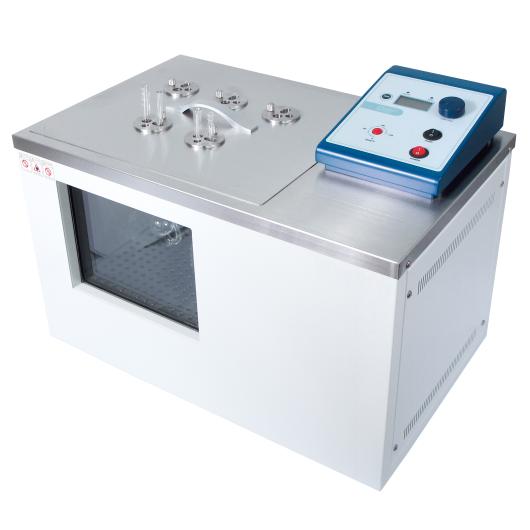

The WVB viscosity bath is equipped with a powerful circulation pump that provides exceptional temperature uniformity, making it ideal for precise measurements with capillary viscometers. Its design includes a vacuum-sealed, tempered safety glass and a stainless steel interior with five viscometer holder positions for optimum usability. With several holder models, it is suitable for use with viscometer tubes including Ubbelohde, Ostwald, Cannon-Fenske Routine / Rewerse flo, threaded Ubbelohde and others.
Read more about product
See other products in applications
Features
- Powerful circulation pump ensures highest temperature uniformity

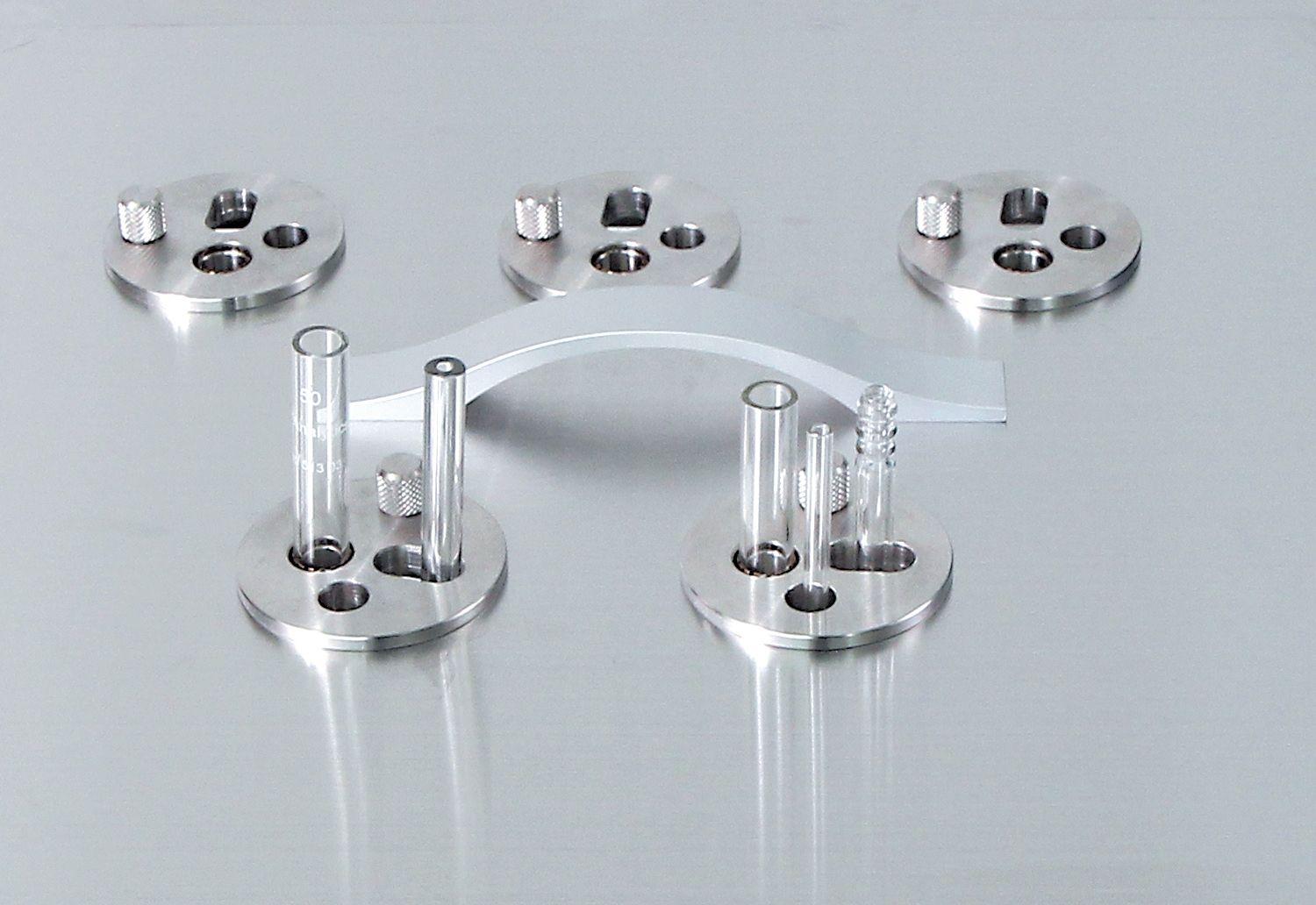

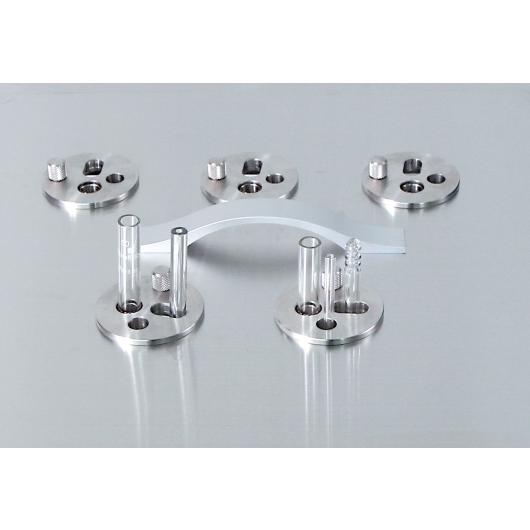

- Stainless steel interior and lid with 5 holes for viscometer holder, powder-coated steel body, vacuum sealed and tempered safety glasses window
- Storage function for the set values of temperature and timer
- Digital timer function (99hr 59min): delay time and operation time can be controlled
- User‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
- Drain valve mounted
- Backlight LCD display
- CE certified and unique serial number for tracing
Safety mechanism
- Overheat and over-current protection sensor error detection locking mode
Controller
- Digital fuzzy controller with Jog-Shuttle-switch (turn + push)
Specifications
- Version with viewing window: 230 x 180 mm
- Width (inner): 350 mm
- Length (inner): 300 mm
- Height (inner): 300 mm
- Width (outer): 585 mm
- Length (outer): 375 mm
- Height (outer): 420 mm
- Weight with packaging: 24 kg
- Effective space: 330 x 300 x 260 mm
- Pump performance: 30 l/min, magnetic drive
- Power consumption: 2000 W
- Temperature control resolution: Display 0.1°C, control 0.1°C
- Temperature range: Room temperature +5°C - 100°C
- Temperature fluctuation: ±0.2°C
- Temperature accuracy: ±0.1°C
- Packing size: 640 x 450 x 500 mm
- Controller temperature sensor: PT100
- Flow rate: 30 l/min
