ZHICHU

Water bath shaker incubator

Code ZQ/HSY-50/W

Zhichu Water Bath Shaker Incubator offers precise temperature control within ±0.2℃ and smooth, uniform motion using a triple-eccentric drive and servo motor. It features easy Cleaning, advanced Safety functions and Data recording with a touch screen for easy parameter management.

Read more about product
See other products in applications
Features

Drive

  • The triple-eccentric Drive is precisely counterbalanced to impart smooth, uniform motion to all flasks, regardless of their position on the platform.
  • The servo motor ensures precise speed control and guarantees high-speed performance and stability.

TEMPERATURE UNIFORMITY

  • The temperature can be precisely controlled within ±0.2℃.

Safety

  • Audible and visible alarms alert the user and shut off heaters in case of setpoint deviation.
  • Automatic restart after a power interruption with non-volatile memory keeps studies running smoothly.

Clean

  • The SUS304 mirror stainless steel interior chamber, shaking tray, and flask holder are easy to Clean.

Cooling (only for model ZQSY-50)

  • High-quality and low-noise CFC-free compressors ensure effective refrigeration and stability.

View

  • The button screen displays real-time temperature, speed, and time.
  • The touch screen (only for model ZHSY-50W) makes parameter setting and Viewing easy, showing:
    • The setting temperature, speed, time, and real-time temperature, speed, and remaining time simultaneously.
    • The setting rotation direction (positive or reverse).

Sensor

  • PT-100 temperature Sensor.

Data record (only for model ZHSY-50W)

  • The data memory can check the history record within 3 months.
  • Data curves, such as real-time temperature and speed, can be displayed.
  • Data can be easily transferred via the USB interface (optional).
Models
Product name

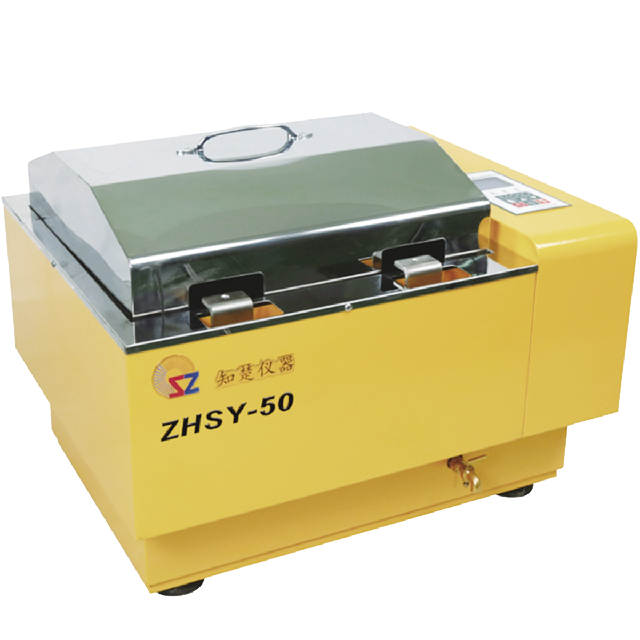

ZHSY-50  Water bath shaker incubator, with platform 420x330mm, 10-280rpm, φ26mm, LCD screen with switches, 62kg

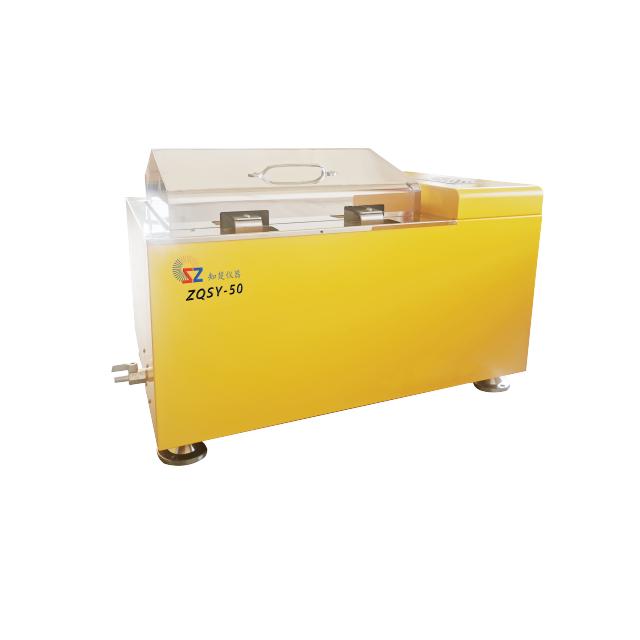

ZQSY-50  Water bath shaker incubator with platform 436x343mm, 10-280rpm, φ26mm, LCD screen with switches, 85kg

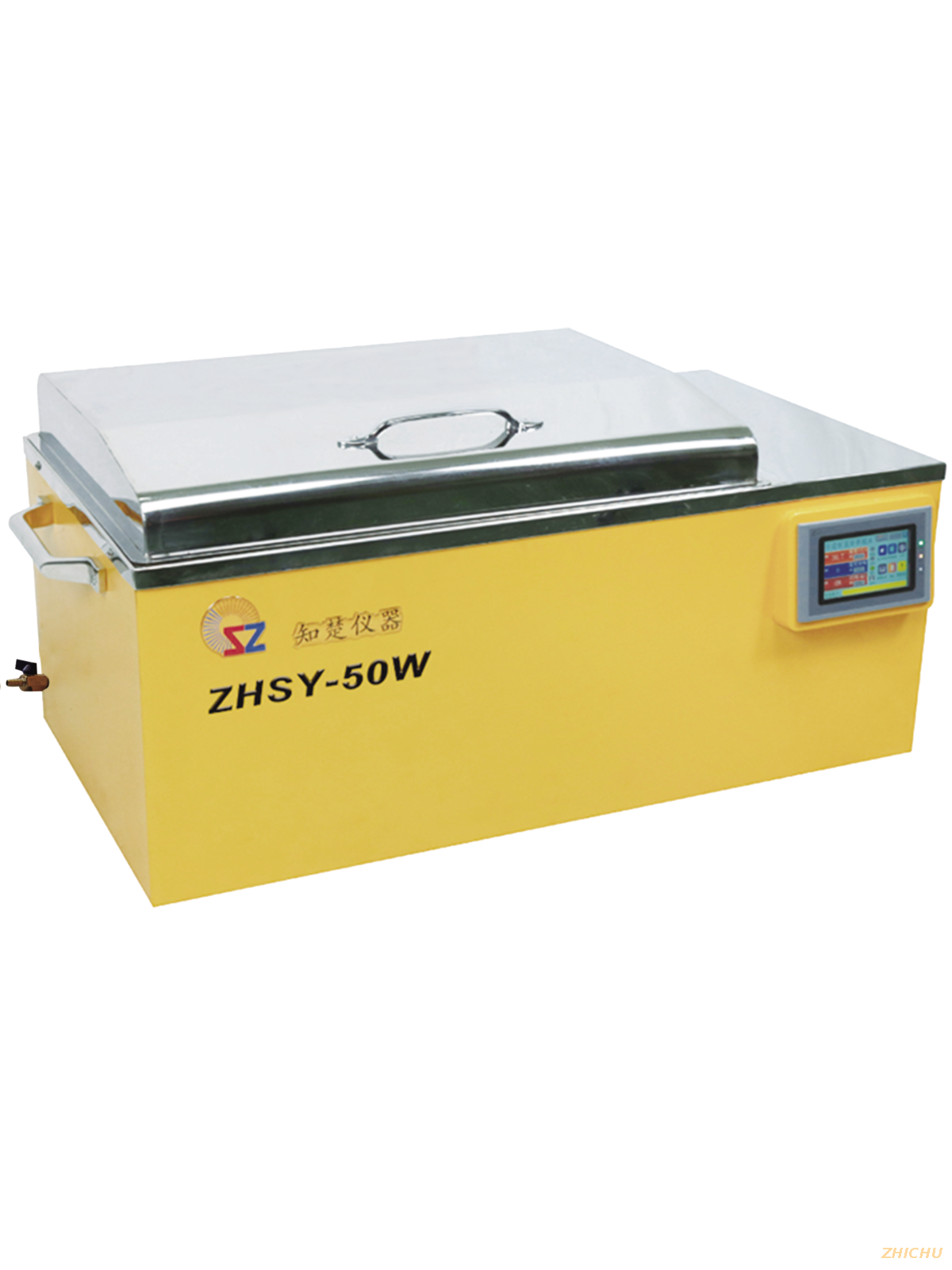

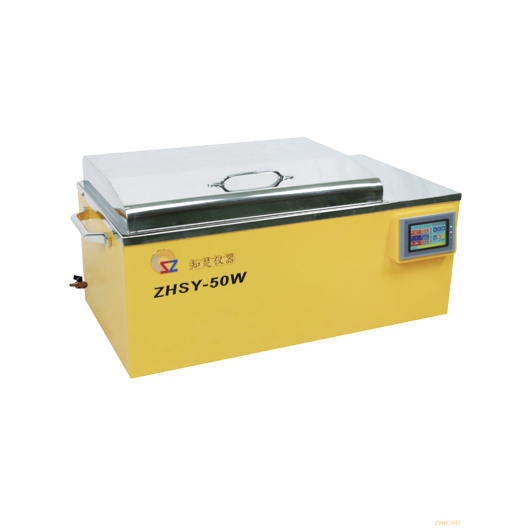

ZHSY-50W  Water bath shaker incubator with platform 455x303mm, 10-180rpm, reciprocation 20mm, 4,3" LCD touch screen, 44kg
