Mouse continuous infusion with blood sampling
Catheterize two separate vessels and use a two-channel system to collect manual blood samples outside the cage without touching the mouse, all while infusing continuously through a swivel.
The blood collection line uses PE tubing for minimal evaporation and terminates in a PinPort™ for simple, clean access with a syringe fitted with a PNP3M injector or a Sarstedt capillary collection tube with a PNP3MS connector.
If your institute does not have a surgeon on site, in many parts of the world Charles River and Envigo can implant the catheters and two-channel mouse Vascular Access Button™ as a surgical service so that the animals arrive at your lab recovered from surgery and ready for use.

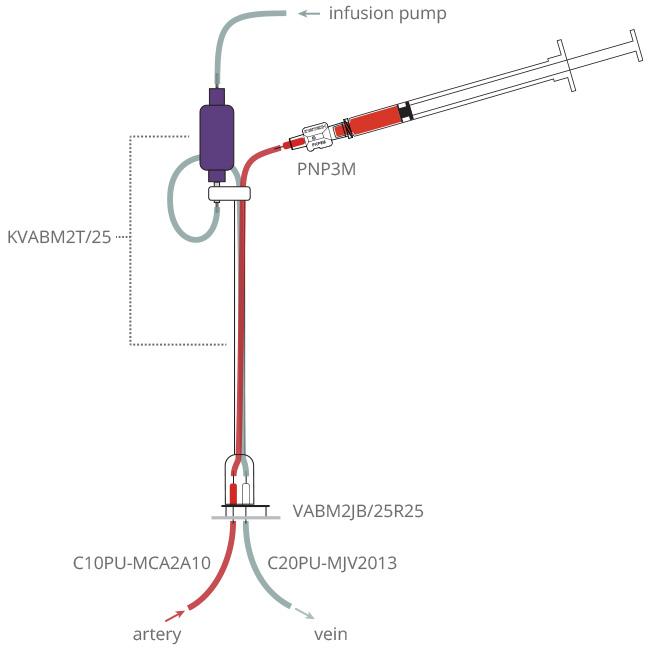

See below for a typical application setup with a list of components. If you need any assistance in selecting other setup parts, please don't hesitate to contact the Animalab team.
- HA1100 Pump 11 Elite infuse-only single syringe pump (704500)
- SMCLA Counter-balanced lever arm for mice, 3.5in (9cm)
- KVABM2T/25 2ch mouse VAB tether kit, 7in (18cm) spring: red=PE, PinPort; white=PU tubing, 375/25PS, 24in CoEx, LS25/6
- VABM2JB/25R25 Vascular Access Button for mouse, 2 channel 25ga/25ga, oval base with felt, injector
- C10PU-MCA2A10 Catheter for mouse carotid artery, soft 1Fr-2Fr, 8cm, 10mm insertion length (a0.9), sq tip. LS25, SP25/12.
- C20PU-MJV2013 Mouse JVC, PU 2Fr 10cm, 13mm insertion length (a1.2cm), round tip. LS25 and SP25/12. Fits 25ga.
- PNP3M-50 PinPort injectors, 10 sterile pouches of 5 (50 pcs)
- PNP3MS-50 PinPort-to-Sarstedt capillary tube connector, 10 sterile pouches of 5 (50 pcs)
- CT-POCT020-K3EDTA Capillary / dispensing tube, 20μL, K3EDTA, violet (Sarstedt Minivette POCT 17.2113.120)
- USP-HS-020-1-NJ1P-50 Sterile catheter flush solution, heparin (20 USP units/mL) in 0.9% saline, 50 pcs (10 packs of 5) 1mL in 1mL syringe, PinPort injector
- USP-S-1-BD1P-50 Sterile catheter flush solution, 0.9% saline, 50 pcs (10 packs of 5) 1mL in 1mL syringe, PinPort injector
