Rat two-channel infusion
Infuse two compounds simultaneously into separate vessels using a two-channel Vascular Access ButtonTM connected to a two-channel swivel and two syringe pumps.
For studies that require two compounds to be infused simultaneously into separate vessels, use a two-channel Vascular Access Button™ connected to a two-channel swivel and two syringe pumps.
The alternative is to use a single channel system with a Y-connector above the swivel. The catheterization surgery will be easier, but the compounds will mix in the line and so you cannot be certain that they will arrive at the vessel at the exact rate of the pump.
If you need to take blood samples during the study, place a third catheter and use a three-channel button with a sampling port outside the cage.

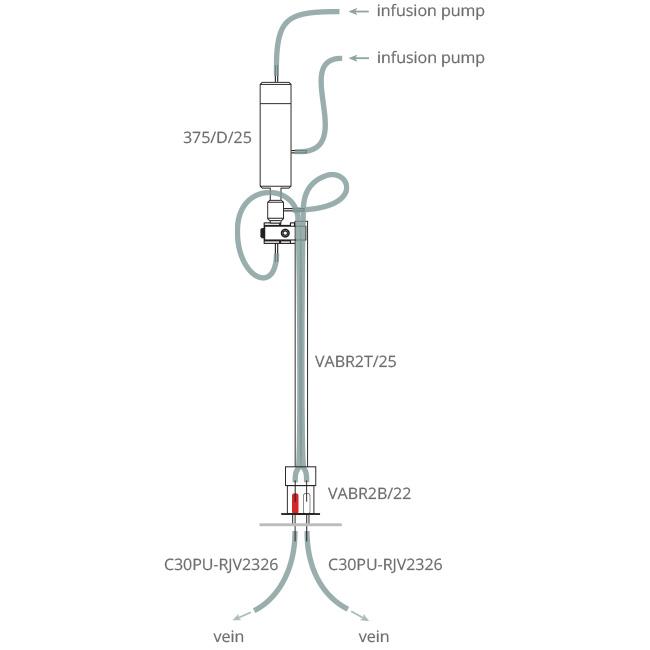

See below typical application setup containing component list. If need any support to choose other setup parts, don't hesitate contact Animalab team.
- C30PU-RJV2326 Catheter for rat jug vein, PU 3Fr 20cm, 2.6cm insertion length (a2.4), rounded tip. 22ga luer stub
- VABR2B/22 Vascular Access Button for rat, magnetic, 2 channel 22ga, injector
- VABR2T/25 Tether for magnetic 2 channel rat VAB, 12in (30cm)
- 375/D/25 25ga dual channel stainless steel swivel
- CM375BS Single-axis counter-balanced arm for stainless steel swivels
- BTCOEX-25 Co-extruded PE/PVC tubing for 25ga, .017x.051in, non-sterile, 30m spool
- LS25 Luer stub, 25ga (red) x 0.5in (12mm), non-sterile
- HA1100 Pump 11 Elite infuse-only single syringe pump (704500)
- USP-HS-020-1-NJ1P-50 Sterile catheter flush solution, heparin (20 USP units/mL) in 0.9% saline, 50 pcs (10 packs of 5) 1mL in 1mL syringe, PinPort injector
- USP-S-1-BD1P-50 Sterile catheter flush solution, 0.9% saline, 50 pcs (10 packs of 5) 1mL in 1mL syringe, PinPort injector
